10.9 MAP® Marine Feeder Armour Cable 遠洋船舶鎧裝電力饋線

IEC 60092 章節規範適用於船舶和海上裝置控制和儀表電路的屏蔽和非屏蔽電纜。電纜採用擠壓固體絕緣材料，額定電壓為 600V，用於固定安裝。
IEC 60092:2021 規定了用於船用和固定和移動海上單元電力、控制、儀器儀表和電信電纜的絕緣和護套材料的電氣、機械和特殊特性的要求。

分享到

商品特色

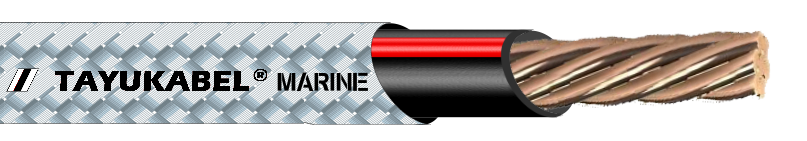

MAP® 遠洋船舶/軍艦鎧裝電力饋線 MARINE FEEDER ARMOUR CABLE

This part of IEC 60092 is applicable to screened and unscreened cables for control and instrumentation circuits on ships and offshore units. The cables have extruded solid insulation with a voltage rating of 600V and are intended for fixed installations.

IEC 60092:2021 specifies the requirements for electrical, mechanical, and particular characteristics of insulating and sheathing materials intended for use in shipboard and fixed and mobile offshore unit power, control, instrumentation, and telecommunication cables.

IEC 60092 章節規範適用於船舶和海上裝置控制和儀表電路的屏蔽和非屏蔽電纜。電纜採用擠壓固體絕緣材料，額定電壓為 600V，用於固定安裝。

IEC 60092:2021 規定了用於船用和固定和移動海上單元電力、控制、儀器儀表和電信電纜的絕緣和護套材料的電氣、機械和特殊特性的要求。

MODEL mm²	導體結構 NO.X MM	絕緣厚度 INS THK	電纜總完成外徑 OVERALL DIA	不鏽鋼鎧裝 ARMOUR	安全電流表 AMPERE(A)
38 mm²	7 / 107 / 0.26mm	1.80 mm	13.50 mm	ST 0.19mm/24/10/10	145 A
50 mm²	19 / 52 / 0.26mm	1.85 mm	15.60 mm	ST 0.19mm/24/10/10	205 A
60 mm²	19 / 62 / 0.26mm	1.85 mm	16.60 mm	ST 0.19mm/24/10/10	237 A
80 mm²	19 / 83 / 0.26mm	2.10 mm	18.20 mm	ST 0.19mm/24/10/12	280 A
100 mm²	19 / 104 / 0.26mm	2.10 mm	19.70 mm	ST 0.19mm/24/10/12	332 A
125 mm²	37/64/0.26mm	2.25 mm	22.3 mm	ST 0.19mm/48/10/10	385 A
150 mm²	37/77/0.26mm	2.30 mm	24.0 mm	ST 0.19mm/48/10/10	412 A
200 mm²	61/62/0.26mm	2.60 mm	27.5 mm	ST 0.19mm/48/10/10	503 A
250 mm²	61/77/0.26mm	2.60 mm	29.9 mm	ST 0.19mm/48/12/12	565 A
325 mm²	61/101/0.26mm	3.20 mm	34.6 mm	ST 0.19mm/48/12/12	630 A
