8.5 UL1979 (MIL-C-17) 軍規級同軸電纜 RG-316 RG-178 RG-179

產品說明 PRODUCT DESCRIPTION
* 鍍銀銅/鍍銀銅包鋼絞線 Silver-Coated Copper or Silver-Coated Copper Clad Steel
* 聚全氟乙烯丙烯絕緣 Teflon FEP Insulation
* 鍍銀銅編織隔離 Silver-Coated Copper Braided (Single/Double Lylar)
* 聚全氟乙烯丙烯披覆 Teflon FEP Sheath
* 額定電壓30V/AC Rated Voltage 30V/AC
* 工作溫度-55℃~200℃ Operating Temperature -55℃~200℃
* 遵循規範 UL 758 Norm. Appliance Wiring Material UL 758.

分享到

商品特色

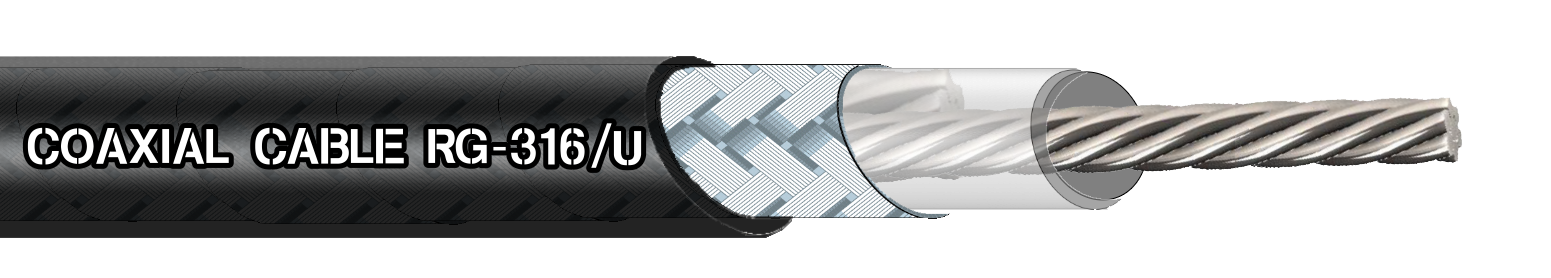

MIL-C-17 (MIL-DTL-17) 【軍規級同軸通信電纜】 RG316 、RG179

STYLE RG SERIES	導體材質/結構 Structure	絕緣材質與外徑 ML/ID	遮蔽率 COVERAGE	披覆材質與外徑 ML/OD	特性阻抗 Impedance
RG-316/U	Silver-Coated Copper 26AWG (34/7)	FEP Teflon, ID:1.53mm	95% SCC Braid	2.53mm ± 0.10	50 Ohm
RG-316/U (Double Braid)	Silver-Coated Copper 26AWG (34/7)	FEP Teflon, ID:1.53mm	95%*2 SCC Double Braid	2.90mm ± 0.10	50 Ohm
RG-179/U	Silver-Coated Copper 30AWG (38/7)	FEP Teflon, ID:1.58mm	95% SCC Braid	2.54mm ± 0.10	75 Ohm
RG-179/U (Double Braid)	Silver-Coated Copper 30AWG (38/7)	FEP Teflon, ID:1.58mm	95%*2 SCC Double Braid	2.98mm ± 0.10	75 Ohm

STYLE

RG SERIES

導體材質/結構

Structure

絕緣材質與外徑

ML/ID

遮蔽率

COVERAGE

披覆材質與外徑

ML/OD

特性阻抗

Impedance

RG-316/U

Silver-Coated Copper 26AWG (34/7)

FEP Teflon,

ID:1.53mm

95%

SCC Braid

2.53mm ± 0.10

50 Ohm

RG-316/U

(Double Braid)

Silver-Coated Copper 26AWG (34/7)

FEP Teflon,

ID:1.53mm

95%*2

SCC Double Braid

2.90mm ± 0.10

50 Ohm

RG-179/U

Silver-Coated Copper 30AWG (38/7)

FEP Teflon,

ID:1.58mm

95%

SCC Braid

2.54mm ± 0.10

75 Ohm

RG-179/U

(Double Braid)

Silver-Coated Copper 30AWG (38/7)

FEP Teflon,

ID:1.58mm

95%*2

SCC Double Braid

2.98mm ± 0.10

75 Ohm

MIL-C-17 (MIL-DTL-17) 【RG 178 & Mini 178 軍規級同軸通信電纜】

STYLE RG SERIES	導體材質/結構 Structure	絕緣材質與外徑 ML/ID	遮蔽率 COVERAGE	披覆材質與外徑 ML/OD	特性阻抗 Impedance
RG-178B/U	Silver-Coated Copper 30AWG (38/7)	FEP Teflon, ID:0.86mm	95% SCC Braid	1.80mm ± 0.08	50 Ohm
Mini-178 1.37mm (50 ohm)	Silver-Coated Copper 30AWG (38/7)	FEP Teflon, ID:0.92mm	95% SCC Braid	1.37mm ± 0.05	50 Ohm
Mini-178 1.37mm (75 ohm)	Silver-Coated Copper 30AWG (38/7)	FEP Teflon, ID:0.98mm	95% TC Braid	1.37mm ± 0.05	75 Ohm
Mini-178 1.32mm (50 ohm)	Silver-Coated Copper 32AWG (40/7)	FEP Teflon, ID:0.68mm	1^st SCC Braid 91% 2^nd SCC Braid 80%	1.32mm ± 0.05	50 Ohm
Mini-178 1.32mm (50 ohm)	Silver-Coated Copper 32AWG (40/7)	FEP Teflon, ID:0.68mm	1^st TC Braid 91% 2^nd TC Braid 80%	1.32mm ± 0.05	50 Ohm
Mini-178 1.13mm (50 ohm)	Silver-Coated Copper 32AWG (40/7)	FEP Teflon, ID:0.68mm	95% SCC Braid	1.13mm ± 0.05	50 Ohm
Mini-178 1.13mm (50 ohm)	Silver-Coated Copper 32AWG (40/7)	FEP Teflon, ID:0.68mm	95% TC Braid	1.13mm ± 0.05	50 Ohm

STYLE

RG SERIES

導體材質/結構

Structure

絕緣材質與外徑

ML/ID

遮蔽率

COVERAGE

披覆材質與外徑

ML/OD

特性阻抗

Impedance

RG-178B/U

Silver-Coated Copper 30AWG (38/7)

FEP Teflon,

ID:0.86mm

95%

SCC Braid

1.80mm ± 0.08

50 Ohm

Mini-178

1.37mm

(50 ohm)

Silver-Coated Copper 30AWG (38/7)

FEP Teflon,

ID:0.92mm

95%

SCC Braid

1.37mm ± 0.05

50 Ohm

Mini-178

1.37mm

(75 ohm)

Silver-Coated Copper 30AWG (38/7)

FEP Teflon,

ID:0.98mm

95%

TC Braid

1.37mm ± 0.05

75 Ohm

Mini-178

1.32mm

(50 ohm)

Silver-Coated Copper 32AWG (40/7)

FEP Teflon,

ID:0.68mm

1^st SCC Braid 91%

2^nd SCC Braid 80%

1.32mm ± 0.05

50 Ohm

Mini-178

1.32mm

(50 ohm)

Silver-Coated Copper 32AWG (40/7)

FEP Teflon,

ID:0.68mm

1^st TC Braid 91%

2^nd TC Braid 80%

1.32mm ± 0.05

50 Ohm

Mini-178

1.13mm

(50 ohm)

Silver-Coated Copper 32AWG (40/7)

FEP Teflon,

ID:0.68mm

95%

SCC Braid

1.13mm ± 0.05

50 Ohm

Mini-178

1.13mm

(50 ohm)

Silver-Coated Copper 32AWG (40/7)

FEP Teflon,

ID:0.68mm

95%

TC Braid

1.13mm ± 0.05

50 Ohm
