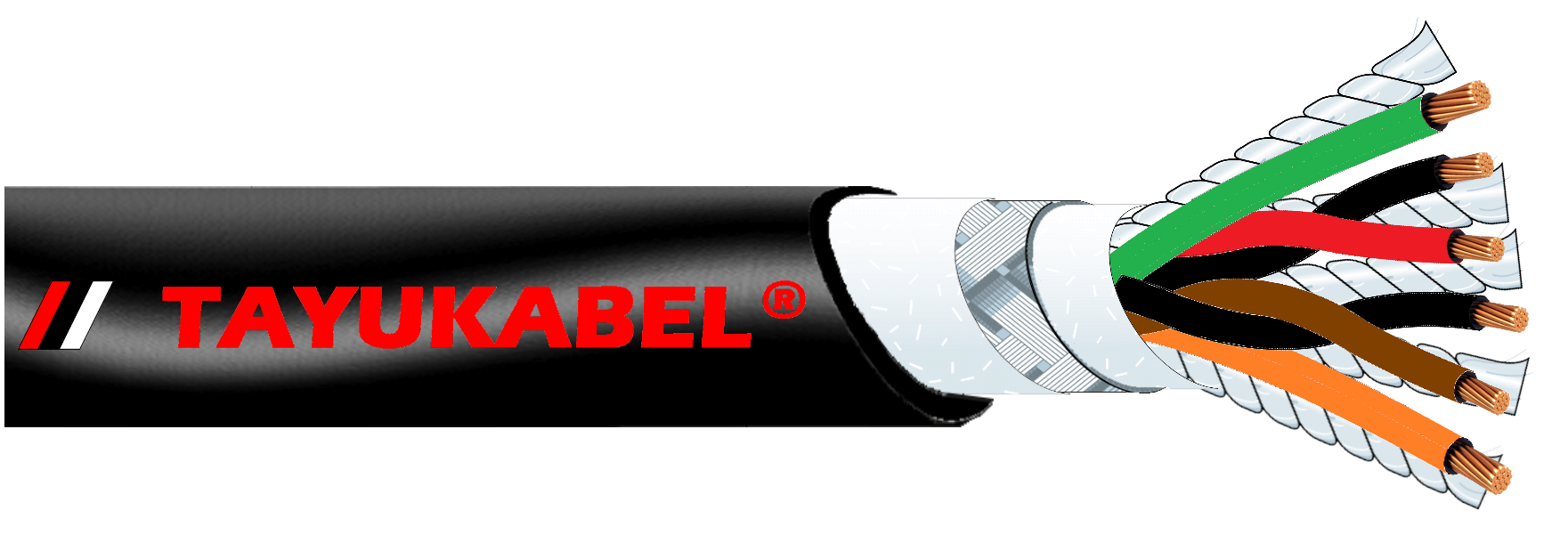

HIGHLY BENDING CABLE耐疲勞 高速移動電纜【TPEE-TPV】
產品說明 PRODUCT DESCRIPTION
*導體:極細無氧銅複絞 Oxygen-Free Copper VDE Class 6.-column 6. level
*絕緣: 杜邦 Hytrel U.S.A. DuPont™ Hytrel® Insulation
*隔離:合金銅編織 Tin-Copper Alloy Braided
*披覆: 埃克森美孚 TPV U.S.A. ExxonMobil Santoprene™ TPV Sheath
*額定溫度-60~135 °C Rated temperature -60~135 °C
*符合ROHS環保規範 Available ROHS and REACH
MAP® 耐疲勞 高速移動電纜 (Highly Bending Cable)
|
DuPont TPEE Hytrel® Insulation+ ExxonMobil Santoprene® TPV Sheath
|
|
24AWG = OFC 0.08mm / 6 /7
|
22AWG = OFC 0.08mm / 9 /7
|
|
規格型號
Part No.
|
訊號線結構
AWG x No.
|
電源線結構
AWG x No
|
完成外徑
OVERALL DIA
|
|
TPEE-TPV-241222
|
24AWG x 1P
|
22AWGx2C
|
6.0 mm ± 0.15mm
|
|
TPEE-TPV-242222
|
24AWG x 2P
|
22AWGx2C
|
6.6 mm ± 0.15mm
|
|
TPEE-TPV-243222
|
24AWG x 3P
|
22AWGx2C
|
7.0 mm ± 0.15mm
|
|
DuPont TPEE Hytrel® Insulation+ ExxonMobil Santoprene® TPV Sheath
|
|
24AWG = OFC 0.08mm / 6 /7
|
20AWG = OFC 0.08mm / 15 /7
|
|
規格型號
Part No.
|
訊號線結構
AWG x No.
|
電源線結構
AWG x No
|
完成外徑
OVERALL DIA
|
|
TPEE-TPV-241202
|
24AWG x 1P
|
20AWGx2C
|
6.5 mm ± 0.15mm
|
|
TPEE-TPV-242202
|
24AWG x 2P
|
20AWGx2C
|
7.3 mm ± 0.15mm
|
|
TPEE-TPV-243202
|
24AWG x 3P
|
20AWGx2C
|
8.0 mm ± 0.15mm
|
