8.4 UL2733 UL2586 UL2516 UL2501 伺服馬達電纜 105°C 600V【耐油】

產品說明 PRODUCT DESCRIPTION
*導體為裸銅或鍍錫銅絞線
Bare Copper or Tinned Copper Conductor

*聚氯乙烯絕緣/聚氯乙烯披覆 (可選擇耐油材質)
PVC Insulation with PVC Jacket, Optional: Oil-Resistance PVC

*多種顏色選擇
Any colors for customized

*額定耐溫:105℃ 額定耐壓:600V
Rated Temp:105℃ Rated Voltage:600V

*符合UL安規: Compliant to UL 758 Norm

*符合UL耐燃標準: Cable Flame Verify.

分享到

商品特色

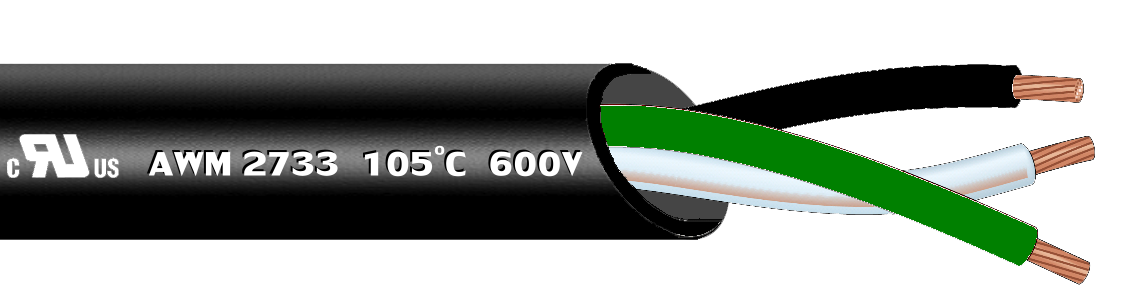

UL STYLE【AWM 2733】

本產品符合安規UL758線纜要求並通過UL 耐燃測試標準。

線材額定耐溫:105℃ 額定耐壓:600V，適用於伺服馬達應用、機械手臂應用、PCB切割儀設備。

導體規格遵循 DIN VDE 0295 Class 6.規範 (退火軟銅絲Annealed copper)

AWM 2733 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2733 (UL2733 105℃ 600V )

AWG 美規公稱	芯線數目 Numb of core	導體結構 Structure	芯線內徑/mm inner Dia.	總完成外徑/mm OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	5.85 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	7.00 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	7.95 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	6.50 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	7.80 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	8.90 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	7.50 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	9.00 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	10.30 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	9.10 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	10.96 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.2 mm	12.54 mm ± 5%

UL STYLE【AWM 2586】

本產品符合安規UL758線纜要求並通過UL 耐燃測試標準。

線材額定耐溫:105℃ 額定耐壓:600V，適用於伺服馬達應用、機械手臂應用、PCB切割儀設備。

導體規格遵循 DIN VDE 0295 Class 6.規範 (退火軟銅絲Annealed copper)

AWM 2586 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2586 (UL2586 105℃ 600V )

AWG 美規公稱	芯線數目 Numb of core	導體結構 Structure	芯線內徑/mm inner Dia.	總完成外徑/mm OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	6.60 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	7.80 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	8.75 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	7.30 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	8.60 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	9.70 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	8.30 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	9.80 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	11.00 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	9.90 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	11.80 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	13.35 mm ± 5%

UL STYLE【AWM 2516】

本產品符合安規UL758線纜要求並通過UL 耐燃測試標準。

線材額定耐溫:105℃ 額定耐壓:600V，適用於伺服馬達應用、機械手臂應用、PCB切割儀設備。

導體規格遵循 DIN VDE 0295 Class 6.規範 (退火軟銅絲Annealed copper)

AWM 2516 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2516 (UL2516 105℃ 600V )

AWG 美規公稱	芯線數目 Numb of core	導體結構 Structure	芯線內徑/mm inner Dia.	總完成外徑/mm OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	7.40 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	8.50 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	9.50 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	8.10 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	9.35 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	10.45 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	9.00 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	10.50 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	12.60 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	11.40 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	13.35 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	14.90 mm ± 5%

UL STYLE【AWM 2501】

本產品符合安規UL758線纜要求並通過UL 耐燃測試標準。

線材額定耐溫:105℃ 額定耐壓:600V，適用於伺服馬達應用、機械手臂應用、PCB切割儀設備。

導體規格遵循 DIN VDE 0295 Class 6.規範 (退火軟銅絲Annealed copper)

AWM 2501 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2501 (UL2501 105℃ 600V )

AWG 美規公稱	芯線數目 Numb of core	導體結構 Structure	芯線內徑/mm inner Dia.	總完成外徑/mm OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	8.1 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	9.24 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	10.2 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	8.76 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	10.04 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	11.13 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	9.74 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	11.24 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	12.51 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	11.37 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	13.24 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	14.82 mm ± 5%
