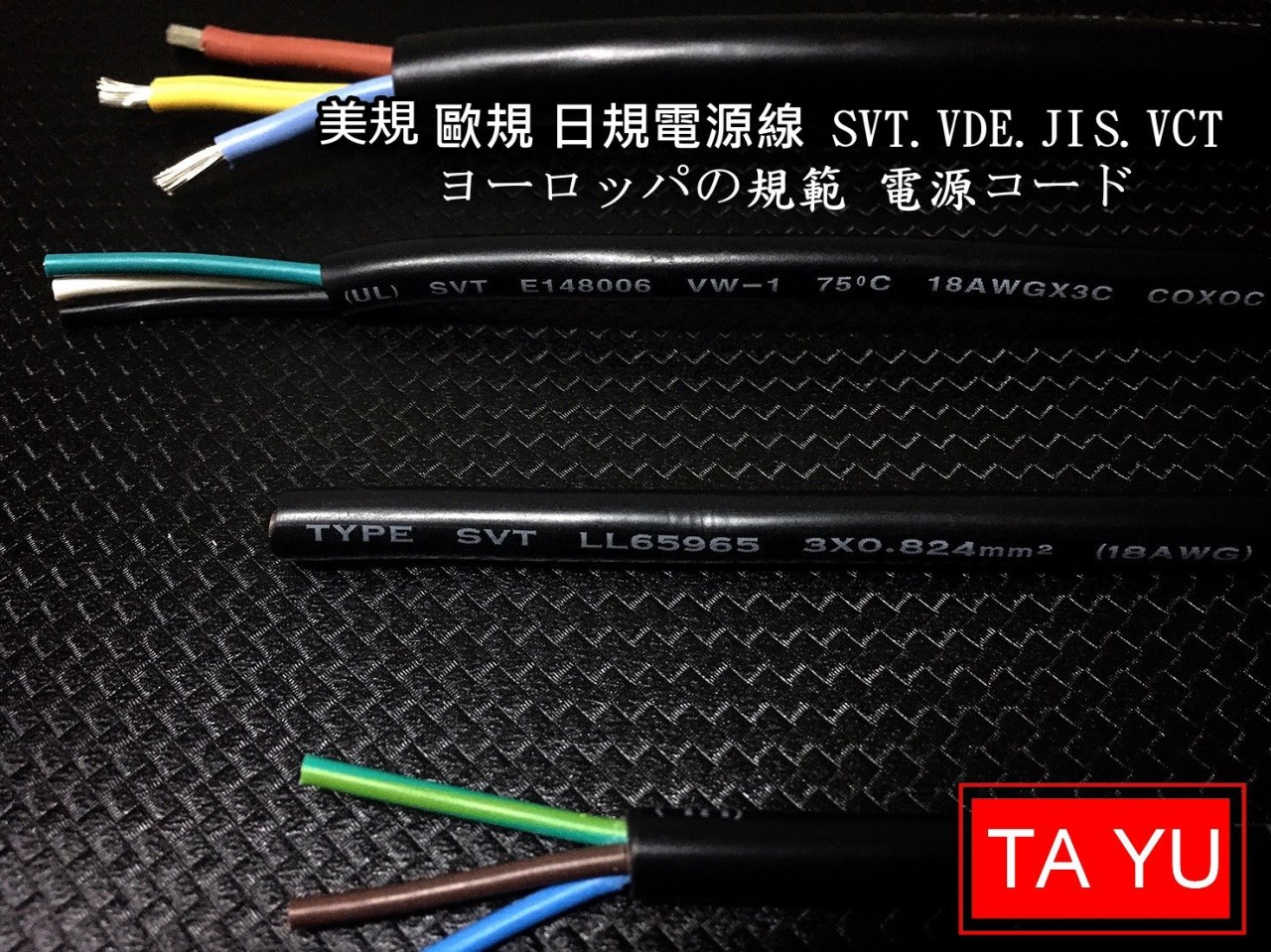

9.5 MAP® 歐規VDE 日規PSE JIS電源線

適用於移動式手工具.洗衣機.治療儀器.打蠟機等設備。

Suitable for portable hand tools.washing machine.medical equipment.polisher.

分享到

產品說明 PRODUCT DESCRIPTION

*軟裸銅絞線 Bare stranded copper conductor

*聚氯乙烯絕緣 Insulation

*額定溫度60°C 75°C 105°C Rated temperature 60°C 75°C 105°C

*額定電壓300伏特 Rated voltage:300V

*防水聚氯乙烯披覆 Water-proof PVC Jacket

*耐油.耐刻痕.Oil Resistance.Abrasion.

*SJTO抗油性佳, SJTW-A適合惡劣環境 SJTO oil-res trait, SJTO for outdoor use

VDE認證 MODEL	結構 MM² X C	導體結構 NO.X MM	絕緣厚度 INS THK	披覆厚度 JAC THK	完成外徑 OVERALL DIA
H03VVH2-F	0.75mm ² x 2C	24/0.2	0.5 mm	0.6 mm	3.5mm x 5.7mm

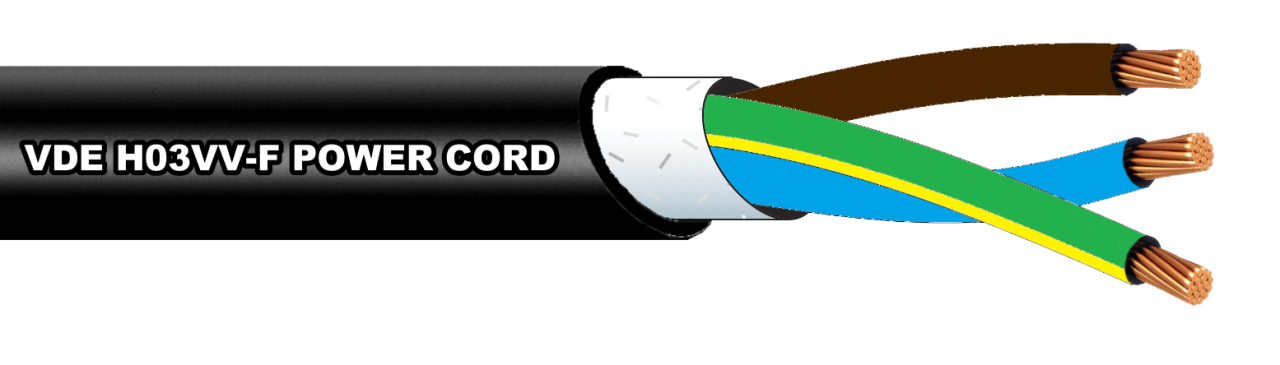

H03VV-F	0.75mm ² x 2C	24/0.2	0.5 mm	0.6 mm	5.5 mm
H03VV-F	0.75mm ² x 3C	24/0.2	0.5 mm	0.6 mm	6.0 mm
H05VVH2-F	0.75mm ² x 2C	24/0.2	0.6 mm	0.6 mm	4.0mm x 6.4mm
H05VV-F	0.75mm ² x 2C	24/0.2	0.6 mm	0.6 mm	6.5 mm
H05VV-F	1.0 mm ² x 2C	32/0.2	0.6 mm	0.6 mm	6.7 mm
H05VV-F	0.75mm ² x 3C	24/0.2	0.6 mm	0.6 mm	6.8 mm
H05VV-F	1.0mm ² x 3C	32/0.2	0.6 mm	0.6 mm	7.0 mm

PSE認證 MODEL	結構 MM² X C	導體結構 NO.X MM	絕緣厚度 INS THK	披覆厚度 JAC THK	完成外徑 OVERALL DIA
VFF/HVFF	0.75mm ² x 2C	30/0.18	0.8 mm	-----	2.7mm x 5.4mm
VFF/HVFF	1.25mm ² x 2C	50/0.18	0.8 mm	-----	3.1mm x 6.2mm
VFF/HVFF	2.0mm ² x 2C	37/0.26	0.8 mm	-----	3.4mm x 6.8mm

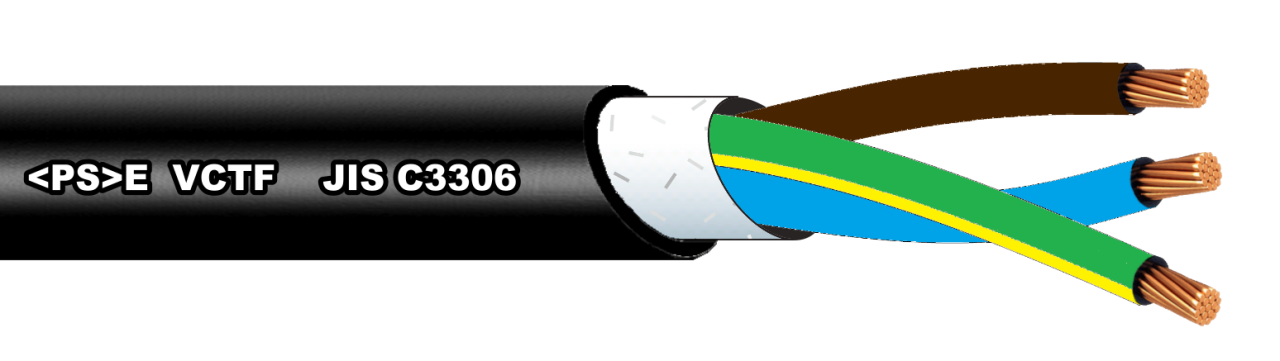

VCTF/HVCTF	0.75mm ² x 2C	30/0.18	0.6 mm	1.0 mm	6.6mm
VCTF/HVCTF	1.25mm ² x 2C	50/0.18	0.6 mm	1.0 mm	7.4mm
VCTF/HVCTF	2.0mm ² x 2C	37/0.26	0.6 mm	1.0 mm	8.0mm
VCTF/HVCTF	0.75mm ² x 3C	30/0.18	0.6 mm	1.0 mm	7.0mm
VCTF/HVCTF	1.25mm ² x 3C	50/0.18	0.6 mm	1.0 mm	7.8mm
VCTF/HVFCTF	2.0mm ² x 3C	37/0.26	0.6 mm	1.0 mm	8.5mm
VCTFK/HVCTFK	0.75mm ² x 2C	30/0.18	0.6 mm	1.0 mm	4.3mm x6.6mm
VCTFK/HVCTFK	1.25mm ² x 2C	50/0.18	0.6 mm	1.0 mm	4.7mm x 7.4mm
VCTFK/HVCTFK	2.0mm ² x 2C	37/0.26	0.6 mm	1.0 mm	5.0mm x 8.0mm
