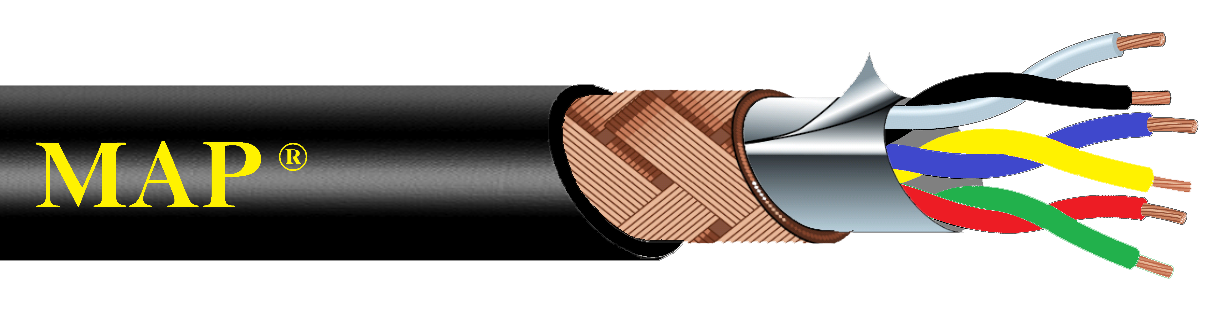

9.4 MAP® PVC隔離控制電纜(鋁箔+編織隔離)

輕便控制電纜,採用雙層遮蔽隔離EMC/EMI雜訊,複合式線種組合,配線系統優化、提高佈線效率。

This is portable control cable. Adopting double shielding and combined structure. The advantage of the cable system and increase the construction efficiency.

分享到

商品特色

產品說明 PRODUCT DESCRIPTION

*導體為裸銅或鍍錫銅絞線 Tinned or bare-stranded copper conductor

*聚氯乙烯或聚乙烯絕緣 PVC or PE Insulation

*雙隔離結構 Double shield & anti-noise (Aluminum Foil + Braid)

*聚氯乙烯披覆 PVC Jacket (Anti-Oil and UV for optional)

*多種顏色選擇 Any colors for customized

*用途:工業設備、伺服器系統設備、柔性拖鍊電纜應用

Apply to industry equipment、server system machines 、flexible and drag chain

MAP® CONTROL CABLE多芯隔離控制電纜 0.5mm² (20AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
0.5 mm²	2C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	5.7 mm ± 5%
0.5 mm²	3C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	6.2 mm ± 5%
0.5 mm²	4C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	6.6 mm ± 5%
0.5 mm²	5C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	7.2 mm ± 5%
0.5 mm²	6C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	7.9 mm ± 5%
0.5 mm²	7C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	7.9 mm ± 5%
0.5 mm²	8C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	8.5 mm ± 5%
0.5 mm²	10C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	9.5 mm ± 5%
0.5 mm²	12C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	10.5 mm ± 5%
0.5 mm²	16C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	11.5 mm ± 5%
0.5 mm²	20C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	12.8 mm ± 5%
0.5 mm²	24C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	14.0 mm ± 5%
0.5 mm²	30C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	14.5 mm ± 5%
0.5 mm²	36C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	16.0 mm ± 5%
0.5 mm²	40C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	17.0 mm ± 5%
0.5 mm²	50C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	19.0 mm ± 5%
0.5 mm²	60C	20 / 0.18	1.7 mm	鋁箔100%+銅網編織	20.5 mm ± 5%

MAP® CONTROL CABLE多芯隔離控制電纜 0.75mm² (18AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
0.75 mm²	2C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	7.0 mm ± 5%
0.75 mm²	3C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	7.3 mm ± 5%
0.75 mm²	4C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	8.0 mm ± 5%
0.75 mm²	5C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	8.9 mm ± 5%
0.75 mm²	6C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	9.8 mm ± 5%
0.75 mm²	7C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	9.8 mm ± 5%
0.75 mm²	8C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	10.6 mm ± 5%
0.75 mm²	10C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	12.0 mm ± 5%
0.75 mm²	12C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	12.5 mm ± 5%
0.75 mm²	16C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	14.0 mm ± 5%
0.75 mm²	20C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	15.0 mm ± 5%
0.75 mm²	24C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	16.5 mm ± 5%
0.75 mm²	30C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	18.5 mm ± 5%
0.75 mm²	36C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	20.0 mm ± 5%
0.75 mm²	40C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	21.0 mm ± 5%
0.75 mm²	50C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	23.0 mm ± 5%
0.75 mm²	60C	30 / 0.18	2.3 mm	鋁箔100%+銅網編織	25.3 mm ± 5%

MAP® CONTROL CABLE多芯隔離控制電纜 1.25mm² (16AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
1.25 mm²	2C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	7.5 mm ± 5%
1.25 mm²	3C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	8.0 mm ± 5%
1.25 mm²	4C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	9.0 mm ± 5%
1.25 mm²	5C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	10.0 mm ± 5%
1.25 mm²	6C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	10.5 mm ± 5%
1.25 mm²	7C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	10.5 mm ± 5%
1.25 mm²	8C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	11.5 mm ± 5%
1.25 mm²	10C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	12.5 mm ± 5%
1.25 mm²	12C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	13.0 mm ± 5%
1.25 mm²	16C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	15.0 mm ± 5%
1.25 mm²	20C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	16.5 mm ± 5%
1.25 mm²	24C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	18.5 mm ± 5%
1.25 mm²	30C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	20.0 mm ± 5%
1.25 mm²	36C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	22.0 mm ± 5%
1.25 mm²	40C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	22.7 mm ± 5%
1.25 mm²	50C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	25.0 mm ± 5%
1.25 mm²	60C	50 / 0.18	2.5 mm	鋁箔100%+銅網編織	27.0 mm ± 5%

MAP® CONTROL CABLE多芯隔離控制電纜 2.0mm² (14AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
2.0 mm²	2C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	8.6 mm ± 5%
2.0 mm²	3C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	9.0 mm ± 5%
2.0 mm²	4C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	10.0 mm ± 5%
2.0 mm²	5C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	11.2 mm ± 5%
2.0 mm²	6C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	12.0 mm ± 5%
2.0 mm²	7C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	12.0 mm ± 5%
2.0 mm²	8C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	13.2 mm ± 5%
2.0 mm²	10C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	15.5 mm ± 5%
2.0 mm²	12C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	16.3 mm ± 5%
2.0 mm²	16C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	17.0 mm ± 5%
2.0 mm²	20C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	19.5 mm ± 5%
2.0 mm²	24C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	22.0 mm ± 5%
2.0 mm²	30C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	23.5 mm ± 5%
2.0 mm²	36C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	25.5 mm ± 5%
2.0 mm²	40C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	26.5 mm ± 5%
2.0 mm²	50C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	29.0 mm ± 5%
2.0 mm²	60C	37 / 0.26	3.0 mm	鋁箔100%+銅網編織	32.0 mm ± 5%

MAP® CONTROL CABLE多芯隔離控制電纜 3.5mm² (12AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
3.5 mm²	2C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	11.2 mm ± 5%
3.5 mm²	3C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	12.0 mm ± 5%
3.5 mm²	4C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	13.0 mm ± 5%
3.5 mm²	5C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	14.0 mm ± 5%
3.5 mm²	6C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	15.5 mm ± 5%
3.5 mm²	7C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	15.5 mm ± 5%
3.5 mm²	8C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	17.2 mm ± 5%
3.5 mm²	10C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	20.0 mm ± 5%
3.5 mm²	12C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	20.5 mm ± 5%
3.5 mm²	16C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	23.0 mm ± 5%
3.5 mm²	20C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	25.0 mm ± 5%
3.5 mm²	24C	66 / 0.26	4.0 mm	鋁箔100%+銅網編織	28.5 mm ± 5%

MAP® CONTROL CABLE多芯隔離控制電纜 5.5mm² (10AWG)

導體截面積 mm²	芯線數 NO.	導體結構 STRUCTURE	芯線外徑 Dia.	隔離方式 Shielded	總完成外徑/mm OVERALL DIA
5.5 mm²	2C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	13.0 mm ± 5%
5.5 mm²	3C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	14.2 mm ± 5%
5.5 mm²	4C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	16.0 mm ± 5%
5.5 mm²	5C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	17.0 mm ± 5%
5.5 mm²	6C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	19.0 mm ± 5%
5.5 mm²	7C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	19.0 mm ± 5%
5.5 mm²	8C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	20.5 mm ± 5%
5.5 mm²	10C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	24.5 mm ± 5%
5.5 mm²	12C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	25.0 mm ± 5%
5.5 mm²	16C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	28.0 mm ± 5%
5.5 mm²	20C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	31.0 mm ± 5%
5.5 mm²	24C	104 / 0.26	5.0 mm	鋁箔100%+銅網編織	34.5 mm ± 5%
