產品說明 PRODUCT DESCRIPTION
*軟裸銅絞線 Bare stranded copper conductor
*聚氯乙烯絕緣 PVC Insulation
*額定溫度60°C 75°C 105°C Rated temperature 60°C 75°C 105°C
*額定電壓300伏特 Rated voltage:300V
*防水聚氯乙烯披覆 Water-proof PVC Jacket
*耐油.耐刻痕.Oil Resistance.Abrasion.
*SJTO抗油性佳,SJTW-A適合惡劣環境 SJTO oil-res trait,SJTO for outdoor use

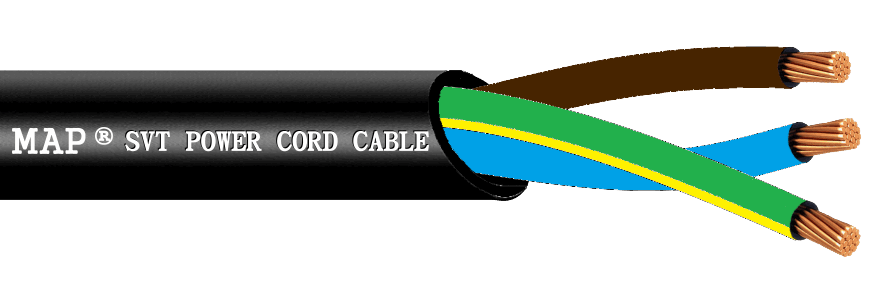

MAP® 美規SVT POWER CABLE
|
MODEL
AWG
|
導體結構
NO.X MM
|
絕緣厚度
INS THK
|
披覆厚度
JACKET THK
|
銅網隔離
BRAID SHI
|
完成外徑
OVERALL DIA
|
|
18AWG x 2C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
-----
|
6.0 mm ± 0.1
|
|
18AWG x 3C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
-----
|
6.4 mm ± 0.1
|
|
18AWG x 3C
|
41/0.16
|
0.38 mm
|
0.76 mm
|
16/9/0.127
|
7.2 mm ± 0.1
|
