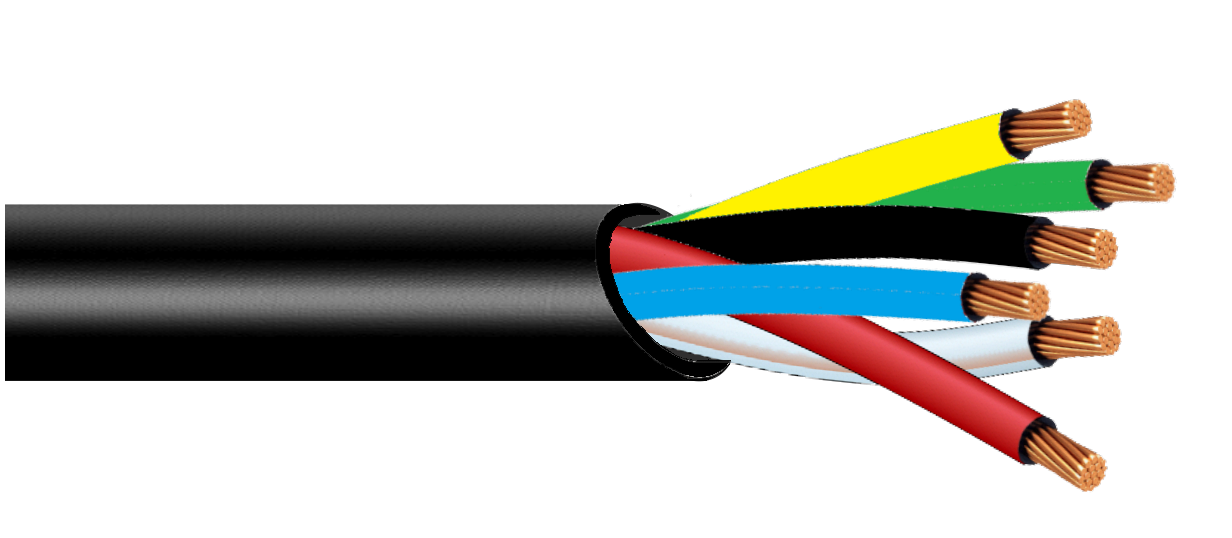

7.9 UL CSA SJT Power Supply Cord UL規格圓形電源線

適用於移動式手工具.洗衣機.治療儀器.打蠟機等設備。

Suitable for portable hand tools.washing machine.medical equipment.polisher.

分享到

產品說明 PRODUCT DESCRIPTION

*軟裸銅絞線 Bare stranded copper conductor

*聚氯乙烯絕緣 PVC Insulation

*額定溫度60°C 75°C 105°C Rated temperature 60°C 75°C 105°C

*額定電壓300伏特 Rated voltage:300V

*防水聚氯乙烯披覆 Water-proof PVC Jacket

*耐油.耐刻痕.Oil Resistance.Abrasion.

*SJTO抗油性佳,SJTW 適合惡劣環境 SJTO oil-res trait,SJTO for outdoor use

MAP^® 美規 SJT.SJTO.SJTW-A.SJTOW-A

MODEL AWG	導體結構 NO.X MM	絕緣厚度 INS THK	披覆厚度 JACKET THK	完成外徑 OVERALL DIA	包裝英制 PACKING
18AWG x 2C	41/0.16	0.76 mm	0.76 mm	7.5 mm ± 0.15	1000FT/Coil
16AWG x 2C	26/0.255	0.76 mm	0.76 mm	8.1 mm ± 0.15	1000FT/Coil
14AWG x 2C	41/0.255	0.76 mm	0.76 mm	9.0 mm ± 0.15	1000FT/Coil
12AWG x 2C	65/0.255	0.76 mm	1.14 mm	9.9 mm ± 0.15	1000FT/Coil
10AWG x 2C	65/0.32	1.14 mm	1.52 mm	14.0 mm ± 0.15	1000FT/Coil
18AWG x 3C	41/0.16	0.76 mm	0.76 mm	7.8 mm ± 0.15	1000FT/Coil
16AWG x 3C	26/0.255	0.76 mm	0.76 mm	8.5 mm ± 0.15	1000FT/Coil
14AWG x 3C	41/0.255	0.76 mm	0.76 mm	9.5 mm ± 0.15	1000FT/Coil
12AWG x 3C	65/0.255	0.76 mm	1.14 mm	10.5 mm ± 0.15	1000FT/Coil
10AWG x 3C	105/0.255	1.14 mm	1.52 mm	13.45 mm ± 0.15	1000FT/Coil
