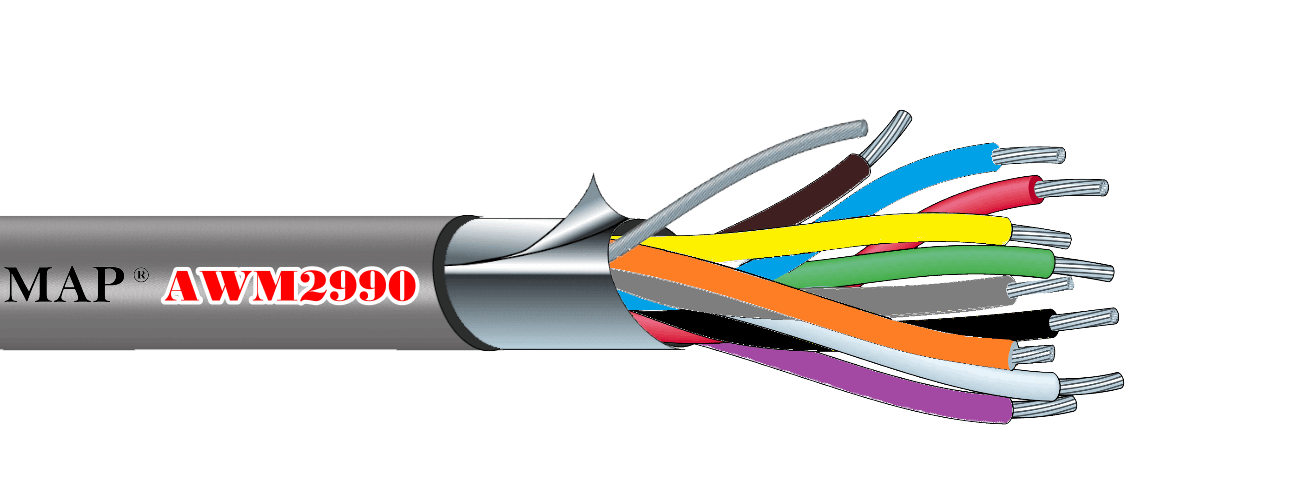

6.3 UL2990 Low voltage Computer Cable 低電壓電腦線

UL2990 電腦線(對型),採用雙重遮蔽隔離,傳遞高清電腦信號。

Pairs of cable group. Adopting double shielding,it has excellent transmission.

分享到

產品說明 PRODUCT DESCRIPTION

*導體為軟銅線或鍍錫銅 Bare copper or Tinned copper conductor

*聚丙烯或聚乙烯絕緣 PP or PE insulation

*芯線集合後鋁箔帶及編織網隔離 Cross cable under Al and braid shield

*鍍錫軟銅地線 Tinned stranded copper drain wire

*資料傳輸電纜, PVC披覆 Data transmission cable, PVC jacket

*額定溫度80°C Rated temperature80 °C

*額定電壓30V Rated voltage:30V

*符合Appliance Wiring Material UL 758.

低電壓信號電纜,由28AWG芯線對數所組成,集合後採用雙重遮蔽隔離,傳遞高清電腦信號。

Low Voltage signal cable.UL2990 consists of 28AWG cable(Pairs). Adopting double shielding, it has excellent transmission.

STYLE	AWG	PAIRS	SHIELD MATERIAL	INSULATION THICKNESS	Nominal Capacitance
UL2990	28	5P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	10P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	14P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	19P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	25P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	34P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	50P	AL Foil 100%	0.12 mm	A: 23 pF/m	B: 30 pF/m
UL2990	28	25P	AL Foil 100%	0.24 mm	A: 12 pF/m	B: 25 pF/m
