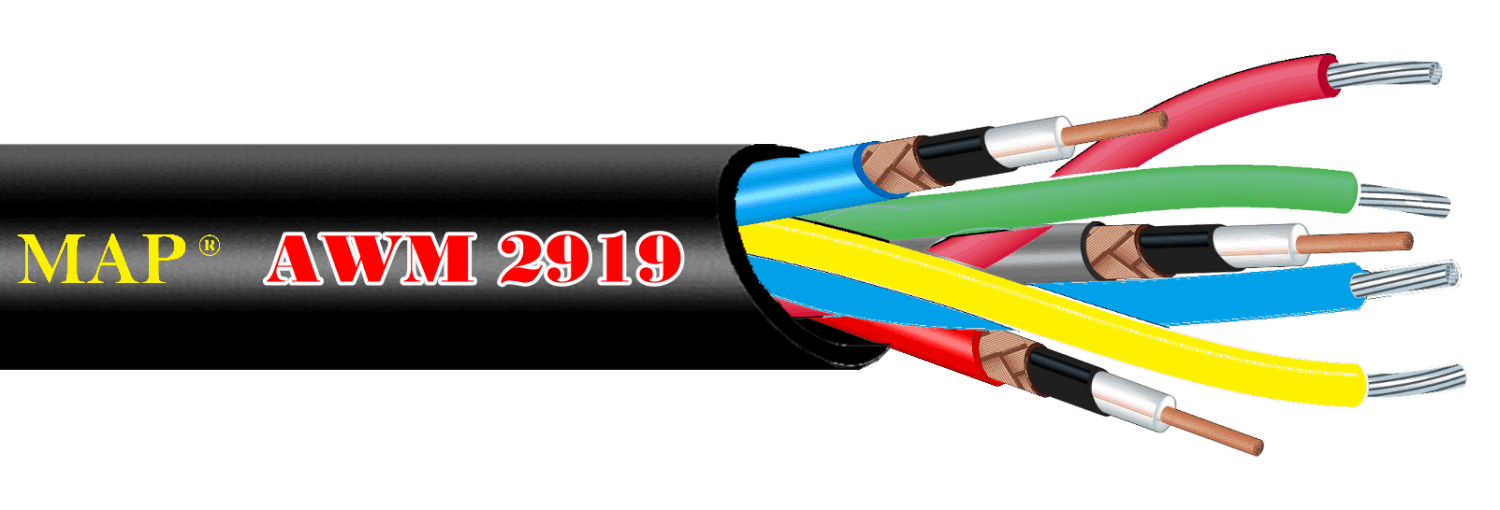

VGA信號電纜,採複合型電纜結構,由同軸線與訊號線組成,採用雙重遮蔽隔離,傳遞高清電腦信號。
VGA signal cable. This is a combination structure.UL2919 consists of a coaxial cable and signal wire. Adopting double shielding, it has excellent transmission.
|
STYLE
|
MODEL
|
AWG
|
COND
|
CORES
|
SHIELD MATERIAL
|
INS THICKNESS
|
JAC THICKNESS
|
OVERALL DIA
|
|
UL2919
|
1+4
|
24
|
7/0.2
|
4
|
AL Foil 100%
|
0.25 mm
|
1.0 mm
|
7.8 mm ± 0.25
|
|
UL2919
|
1+4
|
28
|
7/0.127
|
6
|
AL Foil 100%
|
0.50 mm
|
1.0 mm
|
7.8 mm ± 0.25
|
|
UL2919
|
1+8
|
28
|
7/0.2
|
7
|
AL Foil 100%
|
0.25 mm
|
1.25 mm
|
8.0 mm ± 0.25
|
|
UL2919
|
1+8
|
28
|
7/0.127
|
8
|
AL Foil 100%
|
0.50 mm
|
1.25 mm
|
8.0 mm ± 0.25
|
|
UL2919
|
3+4
|
28
|
7/0.2
|
9
|
AL Foil 100%
|
0.25 mm
|
1.50 mm
|
8.2 mm ± 0.25
|
|
UL2919
|
3+4
|
28
|
7/0.127
|
10
|
AL Foil 100%
|
0.50 mm
|
1.50 mm
|
8.2 mm ± 0.25
|
|
UL2919
|
3+5
|
24
|
7/0.2
|
15
|
AL Foil 100%
|
0.25 mm
|
1.05 mm
|
8.15 mm ± 0.25
|
|
UL2919
|
3+5
|
28
|
7/0.127
|
19
|
AL Foil 100%
|
0.50 mm
|
1.05 mm
|
8.15 mm ± 0.25
|
