Gedore-torque Capture 傳感器

分享到

產品特色

Order Code	Model	Range	Drive	mm HxWxD	kg	Hole Centres mm	Mounting Hole Size	Fixings Supplied & Order Code
038802	CS 1.5	0.1-1.5 N.m	1/4	62 x 85 x 65	0.50	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038805	CS 2	0.2-2 N.m	1/4	62 x 85 x 65	0.50	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038807	CS 5	0.5-5 N.m	1/4	62 x 85 x 65	0.50	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038810	CS 10	1-10 N.m	1/4	62 x 85 x 65	0.50	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038815	CS 25	2.5-25 N.m	3/8	62 x 85 x 65	0.50	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038820	CS 50	5-50 N.m	3/8	62 x 85 x 65	0.57	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038825	CS 100	10-100 N.m	1/2	62 x 85 x 65	0.60	56	M8 x 1.25 (10 Deep Min)	M8 x 50 Socket Cap Head Screw P34320
038830	CS 250	25-250 N.m	1/2	82 x 120 x 87	1.45	79	M12 x 1.75 (16 Deep Min)	M12 x 70 Socket Cap Head Screw P34330
038835	CS 500	50-500 N.m	3/4	82 x 120 x 87	1.60	79	M12 x 1.75 (16 Deep Min)	M12 x 70 Socket Cap Head Screw P34330

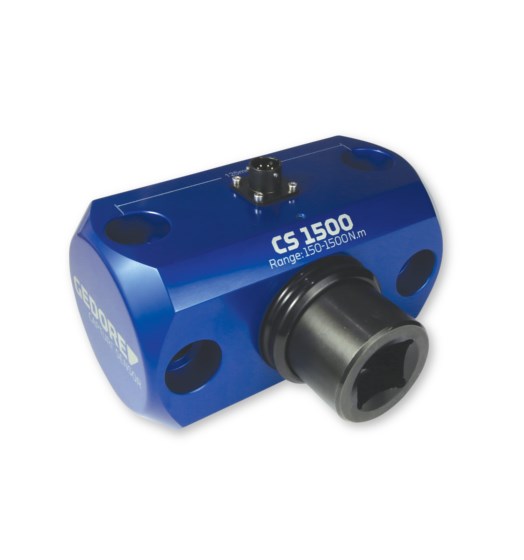

038845	CS 1500	150-1500 N.m	1	100 x 165 x 134	4.00	125	M16 x 2.0 (20 Deep Min)	M16 x 90 Socket Cap Head Screw P34340


Order Code	Model
036226	CAPTURE Cable - CAPTURE Display to Custom Sensor
036246	CAPTURE Cable - CAPTURE Display to CAPTURE Sensor
036251	CAPTURE Cable - CAPTURE Display to SDX Screwdriver
036256	CAPTURE Cable - CAPTURE Display to ETX Wrench
038771	CAPTURE Sensor ISO 1500/90 Adaptor
D18205	CAPTURE Sensor ISO-A Mount
038772	CAPTURE Sensor Quick Change Plate
