- 堅固的槓桿式設計，保證最大的使用壽命。
- 雷射標記的單刻度，簡單易讀。
- 大錶盤設計，讀數方便且抗震性能好。堅固的金屬外殼，防護性能好。
- 記憶指針保持峰值的讀數。
- 提供雙向順、逆時針的檢定報告。
- 精度：順、逆時針±3%（20%~100%量程）。
- 包括檢定證書。可溯源至NIST（美國標準技術協會）。

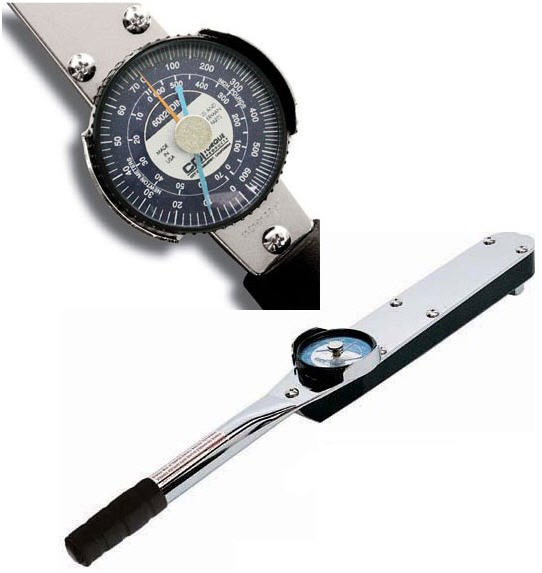

錶盤式扭力扳手適用於汽車、核工業和軍事領域。該系列為堅固的槓桿式設計，使用壽命長，精確度高。小尺寸型號有1/4”和3/8”兩種方頭，提供從3 in.lbs.至50 ft. lbs.的扭矩範圍。大尺寸型號有1/2”，3/4”和1”三種方頭，提供從100 ft.lbs. 至2,000 ft.lbs. 的扭矩範圍。它們都提供±3%精度（20%~ 100%量程），在20%~100%量程範圍內符合或超過ASME B107.14-2004和ISO 6789標準。可溯源至NIST（美國標準技術協會）。
|
Part Number
Memory Needle
|
Torque Range
English |
Incr. |
Torque
Range
Newton
Meter
|
Incr. |
Drive
Size |

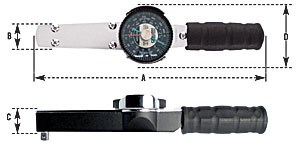

A
in. [mm] |
B
in. [mm] |
C
in. [mm]
|
D
in. [mm] |
Wt.
Lbs. [Kg] |
|
INCH POUND AND NEWTON METER
|
| 151LDIN |
0-15 in. lb. |
.25 in. lb. |
0-1.8 Nm |
.05 Nm |
1/4" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 301LDIN |
0-30 in. lb. |
.5 in. lb. |
0-3.5 Nm |
.1 Nm |
1/4" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 751LDIN |
0-75 in. lb. |
1 in. lb. |
0-9 Nm |
.2 Nm |
1/4" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 752LDIN |
0-75 in. lb. |
1 in. lb. |
0-9 Nm |
.2 Nm |
3/8" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 1502LDIN |
0-150 in. lb. |
2 in. lb. |
0-18 Nm |
.5 Nm |
3/8" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 2502LDIN |
0-250 in. lb. |
5 in. lb. |
0-30 Nm |
.5 Nm |
3/8" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 3002LDIN |
0-300 in. lb. |
5 in. lb. |
0-35 Nm |
1 Nm |
3/8" |
11.5 (292) |
1.1 (28) |
1.2 (30) |
2.75 (70) |
1.1 (.41) |
| 6002LDIN |
0-600 in. lb. |
10 in. lb. |
0-70 Nm |
2 Nm |
3/8" |
15 (381) |
1.5 (38) |
1.2 (30) |
2.75 (70) |
1.6 (.60) |
2005LDFE T型錶盤式扳手，必須由2個人共同操作或者使用倍力扳手。手柄超過10 英尺長。
| Part Number
Memory Needle | Torque Range
English | Incr. | Torque
Range
Newton
Meter | Incr. | Drive
Size | A
in. [mm] | B
in. [mm] | C
in. [mm] | D
in. [mm] | Wt.
Lbs. [Kg] |
| FOOT POUND AND NEWTON METER |
| 252LDFN | 0-25 ft. lb. | .5 ft. lb. | 0-35 Nm | 1 Nm | 3/8" | 11.5 (292) | 1.1 (28) | 1.2 (30) | 2.75 (70) | 1.10 (.41) |
| 502LDFN | 0-50 ft. lb. | 1 ft. lb. | 0-70 Nm | 2 Nm | 3/8" | 15 (381) | 1.5 (38) | 1.2 (30) | 2.75 (70) | 1.60 (.60) |
| 1003LDFN | 0-100 ft. lb. | 2 ft. lb | 0-140 Nm | 2.5 Nm | 1/2“ | 21.75 (552) | 2.25 (57) | 1.50 (38) | 2.75 (70) | 3.70 (1.38) |
| 1753LDFN | 0-175 ft. lb. | 5 ft. lb. | 0-240 Nm | 5 Nm | 1/2“ | 21.75 (552) | 2.25 (57) | 1.50 (38) | 2.75 (70) | 3.70 (1.38) |

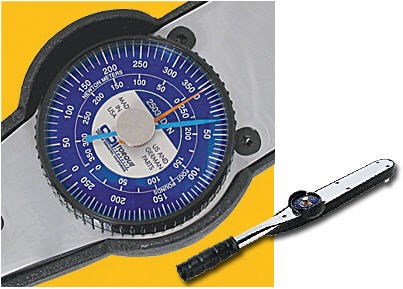

| 2503LDFN | 0-250 ft. lb | 5 ft. lb | 0-350 Nm | 10 Nm | 1/2“ | 21.75 (552) | 2.25 (57) | 1.50 (38) | 2.75 (70) | 3.70 (1.38) |
| 3504LDFN | 0-350 ft. lb. | 10 ft. lb. | 0-480 Nm | 10 Nm | 3/4“ | 28.00 (711) | 2.25 (57) | 1.50 (38) | 2.75 (70) | 5.75 (2.15) |
| 6004LDFN* | 0-600 ft. lb. | 10 ft. lb. | 0-800 Nm | 20 Nm | 3/4“ | 47.00 (1194) | 2.50 (64) | 1.50 (38) | 2.75 (70) | 10.10 (3.77) |
| 10005LDFN* | 0-1000 ft. lb. | 20 ft. lb. | 0-1400 Nm | 25 Nm | 1” | 74.00 (1880) | 2.50 (64) | 3.50 (89) | 3.00 (76) | 30.00 (11.20) |
| ELECTRIC SIGNALING MODELS
|
| 6004LDFE** | 0-600 ft. lb. | 10 ft. lb. | 0-800 Nm | 20 Nm | 3/4“ | 47.00 (1194) | 2.50 (64) | 1.50 (38) | 2.75 (70) | 10.10 (3.77) |
| 10005LDFE** | 0-1000 ft. lb. | 20 ft. lb. | 0-1400 Nm | 25 Nm | 1” | 74.00 (1880) | 2.50 (64) | 3.50 (89) | 3.00 (76) | 30.00 (11.20) |
| 20005LDFE*** | 0-2000 ft. lb. | 40 ft. lb. | 0-2800 Nm | 50 Nm | 1” | 122.00 (3099) | 3.50 (89) | 6.50 (165) | 3.50 (89) | 47.00 (17.54) |
***6004LDFNESS和10005LDFNSS包括1把加長桿。
***6004LDFESS和10005LDFESS包括1把加長桿，指示燈和蜂鳴器。
***20005LDFESS是T型扳手，使用1”母頭，配合使用倍力扳手。
包括5件套手柄，指示燈和蜂鳴器 |
