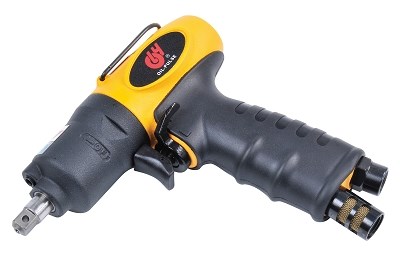

UG系列 - 失速式氣動油壓脈衝扭力板手 / 扭力扳手 NON & Shot off Assembly Tools
● 按壓槓桿啟動。
● 當負載到達預先設定的扭力值，扳手繼續作動但自動脫開打滑(SLIP)。
● 適用行業:汽車、摩托車、自行車、家電、電子、儀器儀表、醫療、健身器材、其他。
| UG系列頭部為方榫 |
|
|
|
|
產品型號
Model
|
容量
Capacity
(Nominal Bolt Size)
|
扭力範圍
Torque Range
|
空載轉數
Free
Speed
|
方榫 Sq.
Drive or Hex. Size
|
耗氣量
Air
Consumption
|
長度
Length
|
重量
Weight
|
|
0.6 Mpa
|
0.4 Mpa
|
|
mm
|
in
|
N.m
|
Ft.lbs
|
N.m
|
Ft.lbs
|
r.p.m
|
in
|
m³/min
|
mm
|
Kg
|
|
UG-20
|
M5~M6
|
3/16~1/4
|
10~20
|
7.4~14.8
|
8~14
|
5.9~10.3
|
7500
|
3/8
|
5/16
|
168
|
1.1
|
|
UG-28
|
M5~M6
|
3/16~1/4
|
16~28
|
11.8~14.8
|
12~20
|
8.9~14.8
|
7000
|
3/8
|
5/16
|
167
|
1.0
|
|
UG-35
|
M6~M8
|
1/4~5/16
|
20~35
|
14.8~25.9
|
16~26
|
11.8~19.2
|
6500
|
3/8
|
5/16
|
167
|
1.0
|
|
UG-45
|
M8~M10
|
5/16~3/8
|
30~45
|
22.2~33.3
|
22~36
|
16.3~26.6
|
6000
|
3/8
|
3/8
|
173
|
1.4
|
|
UG-55
|
M10~M12
|
3/8~1/2
|
30~55
|
22.2~40.7
|
─
|
─
|
5800
|
1/2
|
3/8
|
180
|
1.9
|
|
UG-65
|
M10~M12
|
3/8~1/2
|
40~65
|
29.6~48.1
|
─
|
─
|
4600
|
1/2
|
3/8
|
186
|
2.0
|
|
UG-80
|
M12
|
1/2
|
45~80
|
33.3~59.2
|
─
|
─
|
5500
|
1/2
|
3/8
|
191
|
2.4
|
|
UG-130
|
M12~M14
|
1/2~9/16
|
100~130
|
74~96.2
|
─
|
─
|
3400
|
1/2
|
3/8
|
220
|
3.1
|
