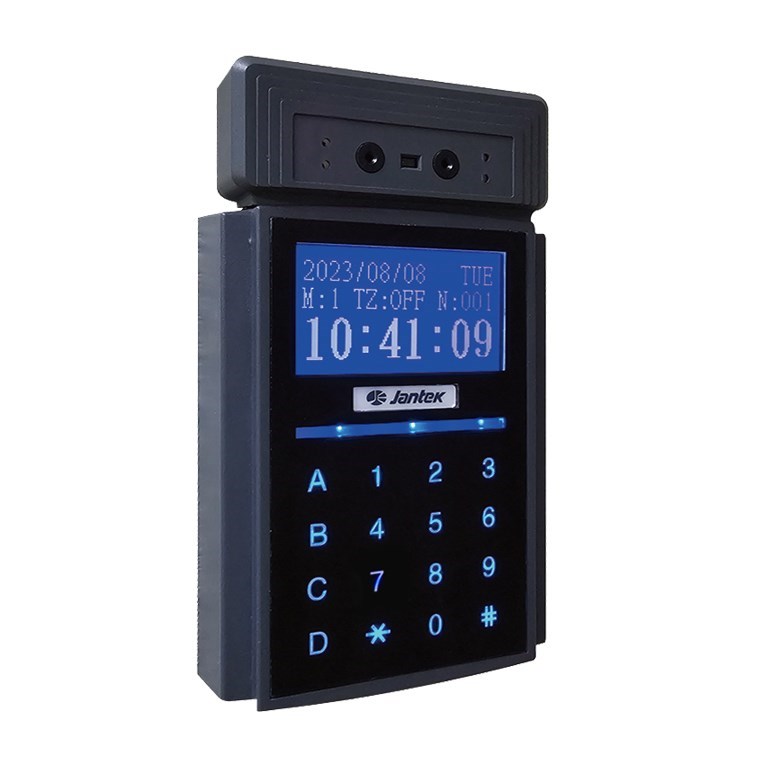

Face recognition reader

📌Features

 ‧ Standard card format is EM. Mifare, HID, Felica, NFC are optional.
‧ Effective reading range for EM is 7~15 cm. For Mifare is 3~5 cm.
‧ Programmable door closing delay time. Adjustable from 0 to 250 seconds.
  Alarm will be triggered after set delay time.
‧ Connecting with PC via RS485, RS232 or RS422. TCP/IP is optional.
‧ 130,000 history records.
‧ Card capacity is 51,200.
‧ Face capacity in 1:N case is 12,500. Face capacity in 1:1 case is 25,000.
  Every person has 4 templates.
‧ Built-in watch dog.
‧ Reader ID is settable with keypad.
‧ Built-in tamper switch and alarm.
‧ Available for contacting detector.
‧ Data is recorded during power failure.
‧ Compatible with push button and readers (EX: PR-200 and PR-400) for IN and OUT access control.
‧ With backlit keypad and LCD.
‧ With RTC IC to record accessing time.
‧ Operation modes: proximity card + face, pin code + face, proximity card or
  pin code + face, face only, facility code only, no access control mode.
‧ Supports liveness detection. Effectively reject hacking with photos and videos.

📌Specifications

 Specification

‧ Dimension: 178(L)104(W)37(H)mm
‧ Keypad: 4x4 16 keys (blue backlit LED)
‧ Relays: 4 relays (MAX DC 12V 1A)
‧ Working temperature: -10~500C
‧ Working humidity: 20%~90%
‧ LCD: 128x64 dots (blue backlit LED)
‧ Power: DC12V 1A
‧ FRR: <1/100
‧ FAR: <1/100,00000
‧ Vertical viewing angle: 65∘
‧ Image resolution: 720x1280
‧ Camera system: dual camera system (RGB+IR)
‧ Recognition distance: 0.5m~1.3m
‧ Recognition time: <450ms
‧ Luminance: 0.01 Lux~65,000 Lux

📌Ordering Information

📌Reference models

Model	Picture	Product Name
JFR-530		Facial Recognition Reader
JFR-300		Embedded IR Facial Recognition
