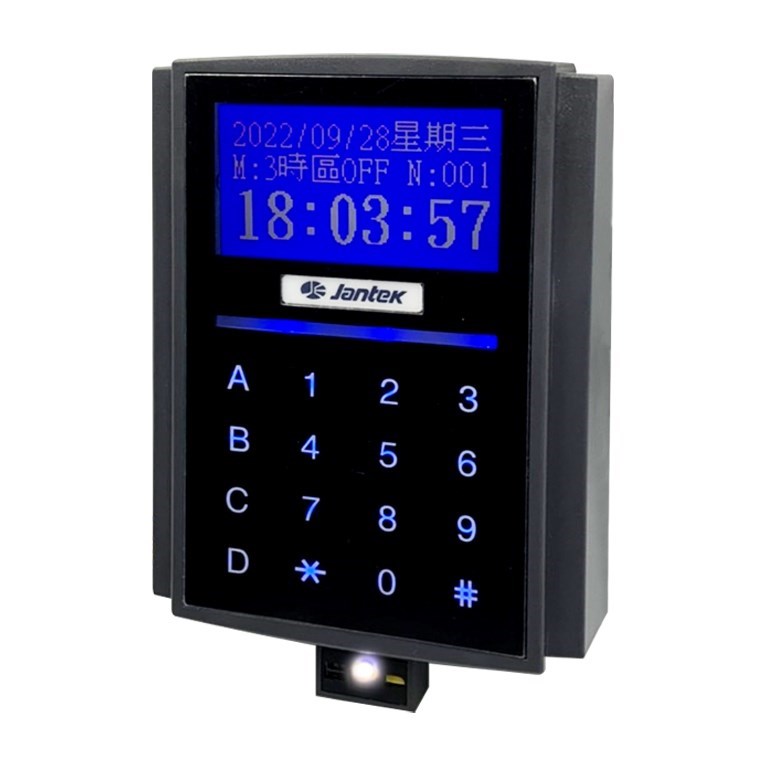

PR-530C-MTEQ QR CODE Reader

Video

Features

• Effective reading range for EM is 6~10 cm. For Mifare is 3~5 cm.
• Programmable door closing delay time. Adjustable from 0 to 255 seconds. Alarm will be triggered after set delay time.
• Standard card format is EM. Mifare or HID 125Khz card are optional.
• RS485, RS232 and RS422 interfaces. TCP/IP is optional.
• With RTC.
• Built-in watch dog.
• Reader ID is settable with keypad.
• With a detection loop for external detector.
• 130,000 history capacity. 50,000 user capacity.
• Built-in tamper switch and alarm.
• Compatible with push button and readers (EX: PR-200 and PR-400) for IN and OUT access control
• Operation modes: Card Only, Card + PIN, PIN or Card, Facility Code Only, Opening or Inhibit Access.
• Support 3 time zones per day.
• With 5 RS232 contacts and 3 RS485 contacts. Available for serial printer.
• Use ISP to update firmware.
• With a Wiegand output and 2 Wiegand input.
• With ARM Cortex-M4 32 bit CPU. Clock rate is 84MHz.
• With 48Mbit Flash memory.
• Scanner’s resolution is 648(horizon)x488(vertical).
• Scanner’s available angle is 648° (horizon)x488° (vertical).
• Scanner is white light.
• Scanner supports both Code39 and QR code.
• Scanner supports normal indoor light.
