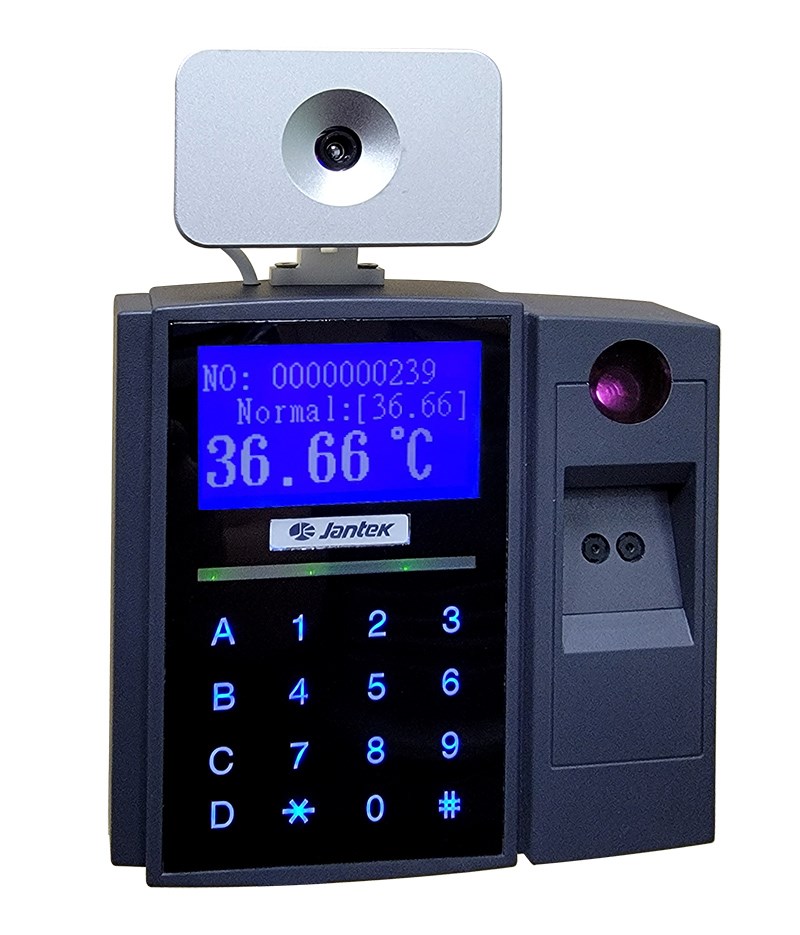

JFT-530C Face recognition and body temperature measuring reader

Video

Features

• Face recognition + body temperature measuring sensor. Temperature measuring results are recorded and can be transmitted to software.
• Adjustable normal body temperature range. From 0.0 to 99.9℃. Alarm will be triggered when detecting people in fever. Doors won’t open.
• Support dot matric temperature measuring method. Dot resolution is 32*32. Temperatures vary by approximately ±0.2℃.
• Temperature measuring speed is about 0.5~0.8 second. Maximum angle of view is 8∘.
• Reading range is 0~80CM. Best reading range is 2~60CM.
• Best environment temperature while measuring is 10 to 35℃.
• Built-in dual cameras support multimodal video analysis technique. Very adequate to recognize faces under plural lights.
• Supports offline recognition. No server or controller is required.
• Supports liveness detection. Effectively reject hacking with photos and videos.
• Effective reading range for EM is 6~10 cm. For Mifare is 3~5 cm.
• Standard card format is EM. Mifare, HID 125Khz or dual frequency card are optional.
• 10,000 user capacity.
• 130,000 history capacity.
• Operation modes: card + facial recognition, pin code + facial recognition, card or pin code + facial recognition, facial recognition only.
• RS485, RS232 and RS422 interfaces. TCP/IP is optional.
• With a Wiegand output for upper controller/server.
• Reader ID is settable with keypad.
• Three-color LED.
• With RTC.
• Programmable door closing delay time. Adjustable from 0 to 255 seconds. Alarm will be triggered after set delay time.
• Built-in watch dog.
• Built-in tamper switch and alarm.
• With a detection loop for external detector.
• Data is recorded during power failure.
• 3 time zones per day.
• Authority can be set on reader or software.
• Reader keeps on working when internet or server fails.
• With 24 settable time zones.
• With 3 RS232 contacts.

Specifications

• FAR <0.00001%
• Accuracy rate≧99.8%
• Minimum detecting face resolution is 100px*100px.
• Recognition speed <1 second.
• Effective recognition range is 0.3~1 meter.
• 4 * 4 backlit touch keypad.
• DC 12V 1A power.
• Working temperature -20~50℃
• Humidity 20%~90%
• Reader dimension is 143(L)*142.5(W)*38(H) mm
• Temperature sensor dimension is 74(L)*46(W)*22(H)mm
