📌Features
● The Contactless, feature means sterile and hygienic
● Under normal situation with blue LED. When it is active
● LED turns to Green. It's easy to indicate the operation status
● Relay trigger time is adjustable from 1 to 9 seconds
● Proximity distance is adjustable from 10 to 20 cm
● Indoor use only
● Remote control door open for maximum
● 10M distance with an infrared keypad (Optional)
● Relay Life: Mechanical:100,000,000 times
● Electrical:500,000 times
📌Specifications
| Dimension |

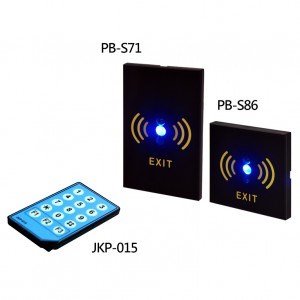

PB-S71 119 (L) X 73 (W) X 38 (H) mm |
| |
PB-S86 89 (L) X 89 (W) X 38 (H) mm |
| Contact Rating |
0.5A 125VAC / 2A 30VDC / 0.3A 110VDC |
| Contact Type |
2 form C (DPDT) |
| Relay Life |
Mechanical:100,000,000 times / Electrical:500,000 times |
| Operation Temperature |
-20°C ~ 55°C |
| LED indicate |
Blue: normal / Green:active |
| Relay trigger time |
1 to 9 second (adjustable) |
| Operation Distance |
From 10 ~ 20 cm (adjustable) |
| Operation Voltage |
DC9V ~ DC12V |
📌Ordering Information
3.jpg)
📌Reference models
| Model |
Picture |
Product Name |
| PB-N71/N86 |
 |
Infrared Push Button (Proximity Button & Exit button) |
