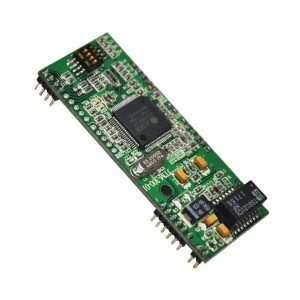

TCPIP Module

specifications

CPU：

16 bit CPU, 100MHz

Memory ：

512KB FLASH, 32KB RAM

Connector Type：

JTC-300：DB9 (Male) / RJ-45

Watch Dog：

Support watch Dog, system never hang

Interface

Ethernet ：

Support full duplex / half duplex
Support twisted pair crossover detection and
auto-correction (Auto-MDIX)

Serial ：

JTM-300：TTL
JTC-300：RS-232/485/422, half/full duplex

No. of serial Port：

 1

Signals：

RS-232:TxD, RxD, RTS, CTS, GND

RS-485 2 wire: A+/B-  RS-422 4 wire: T+/T-, R+/R-

Baud rate ：

1200 bps~921.6kbps

set up

Parity Check：

None, even, odd

Data bits ：

5, 6, 7, 8

Stop bits：

1, 1.5, 2

Flow Control：

RTS/CTS

OS：Windows XP, Windows 2000, Windows NT, Windows95/98 ME, Vista, Windows 7, Windows 10 . . .

Power requirements：

JTM-300：DC5V, Max.300mA
JTC-300：DC9V~24V, Max.600mA

Operating temperature：0-70℃

humidity：5 - 95%RH

temperature：-20-85℃

Size：65 x 26 x 7 mm (W x L x H)

Support：TCP, IP, UDP, ARP, DHCP, ICMP, HTTP
