📌Features
With Wiegand or TTL interface which can be transferred to be RS232 or RS485 signal output
Built-in one alarm loop for sensor or other detector
Built-in two Relay for NO/NC signal output
Through RS232 or RS485 to make the command transmission
As the interface of JST-320
Proximity Reader is available (Magnetic stripe Reader, Barcode Reader is the option device)
When JR-46KC disconnect to JST-320 panel, the Card capacity is 1,000,000, but those cards must legal to open door on the reader.
Diagram：

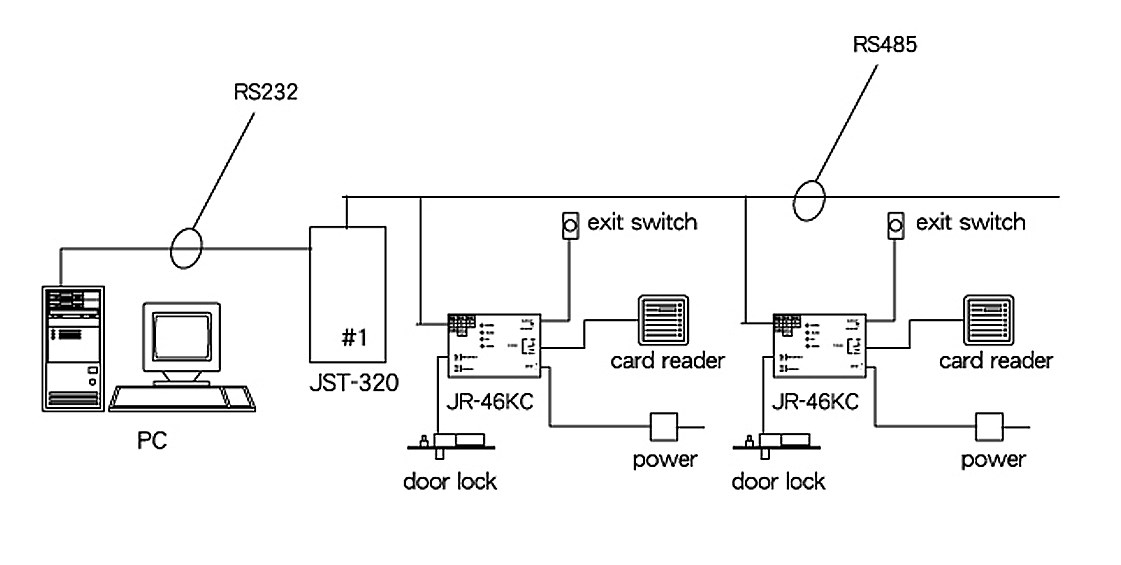

Configuration：
.jpg)
📌Specifications
| power requirement |
DC12V 1Amp |
| Environment |
Operating Temperature:0℃~50℃ |
| Humidity |
20%~90% RH |
| Dimensions |
110(L) x 95(W) x 26(H)mm |
| Relay |
2 relay contact (Max. DC 12V 1Amp) |
📌Ordering Information
Option Access Controller：JST-420 / JST-320
Option Reader (Wiegand)：PR-200 / PR-75W / PR-400
