📌Features

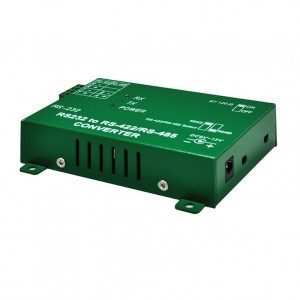

Converts RS232 to RS485/RS422
Data transmission rates up to 115.2K bps
Transmission distance up to 4000 ft (1250 meters)
User selectable by switch for HALF/FULL DUPLEX
Auto switch the HALF DUPLEX TX without extra I/O control
With LED indicator for transmission and receiving
Easy to install with screw terminal connector
Termination (120 Ohm) resistor is selectable by switch
Built in transient voltage suppressor against the thunder
Built in optical couple isolator (Option device)
📌Specifications
| Dimension: |
ATC-104 75 (W) X 120 (L) X 25 (H) mm |
| Power: |
9V ~ +12VDC 300mA (minmum) |
| Operation Temperature: |
0°C ~ 65°C |
| Humidity: |
20% ~ 95% RH |
