Face recognition and palm prints reader

📌Features

 Features

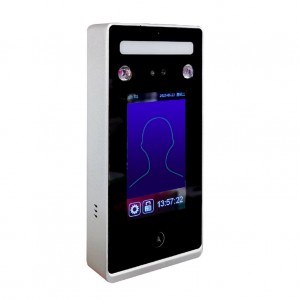

Face recognition and palm prints reader.

User capacity is 5,000.

History record capacity is 1,000,000.

Operation modes: card only, card + pin code, palm print only, palm print + card number, card number only, card number + pin code, face recognition 1:N.

Recognition speed is less than 500ms.

Supports liveness detection.

Effective reading range for faces is 50~220 cm.

Effective reading range for live faces is 50~130 cm.

Can recognize users with face masks. (Settable)

With voice prompts.

FRR<= 0.01%

FAR<= 0.001%

📌Specifications

 Specification

1 reed switch contact.

1 relay output.

1 push button contact.

1 Wiegand output supports Wiegand 26/34/42 bit for separate controller.

LINUX OS

2 high resolution color cameras

1 LED bright fill light (automatically adjust to ambient lights)

1 infrared fill light

4.3 inch touch screen

TCP/IP communication

Dimension 190(L)×90(W)×26(H) mm

Working voltage DC12V±10%

Supply voltage DC 12V，2A

Working temperature－20 ℃~ 50 ℃

Working humidity 10% ~ 85%

📌Ordering Information

📌Reference models

Model	Picture	Product Name
JFR-530		Facial Recognition Reader
JFR-300		Embedded IR Facial Recognition
