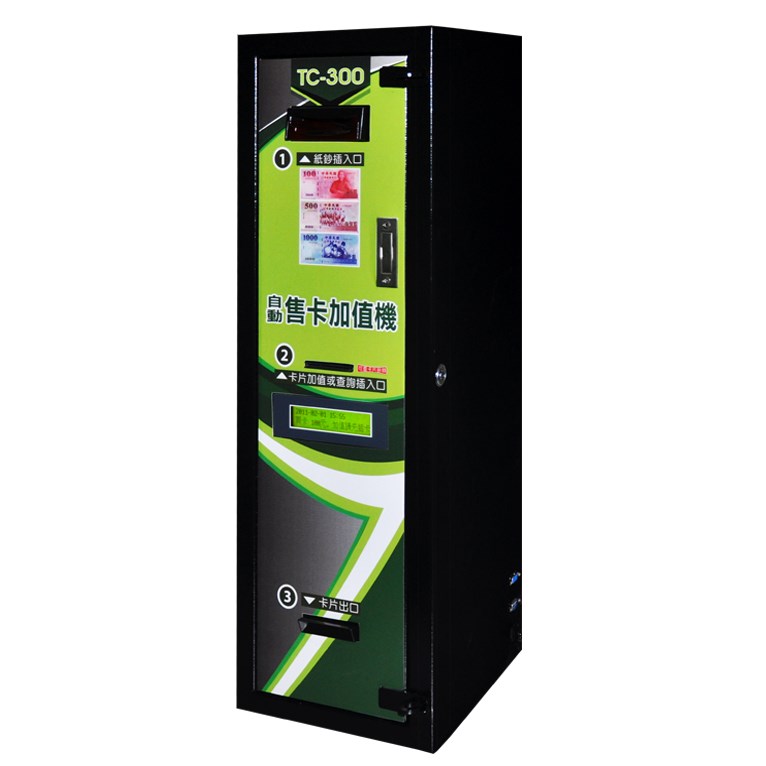

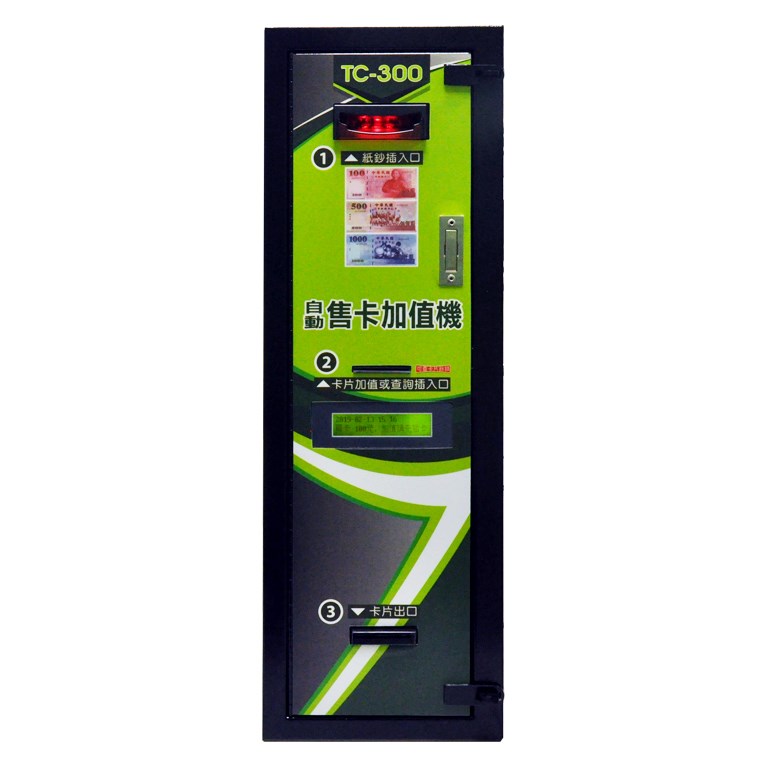

TC-300 Note Acceptor with Card Dispenser (Top up and Card Vending Machine)

Model: TC-300
Type: Card Dispenser (Top up reader and Card Vending Machine)

分享到



📌Specifications


Could recognize bills from more than 80 countries.
Card dispenser could place 300 pieces Mifare 0.76mm thick cards.
Metal case with baking finish is antirust and strong. Hard to break.
Inner bill validator is locked. A key is required to unlock and take out bills. Pretty secure.
When preloaded cards are sold out, a warning message will show on the LCD and no longer accept any bill until cards are reloaded.
Bill box’s capacity is 800 notes.
Support 2 units of grand total amounts.
Could set different start time and return to zero respectively for 2 units of grand total amounts.
Built-in keypad could set acceptable currency values.
Adjustable top-up ratio supports promotions and discount.
Users can check remaining balance on their cards.
Top-up upper limit can be set up.
Top-up amount for each card will be recorded and upload to software.
With a RS485 port.



LCD 16 x 2 Backlit LCD
Keypad 4 x 4 Metal Keypad
Power Requirements Input : 90VAC ~ 240VAC
  Output :12VDC/1A、5VDC/4A
Environment Temperature: 0℃~50℃
Dimensions 240(L)×240(W)×720(H)㎜
  Humidity : 20%~ -90%
Weight 19 Kgs
