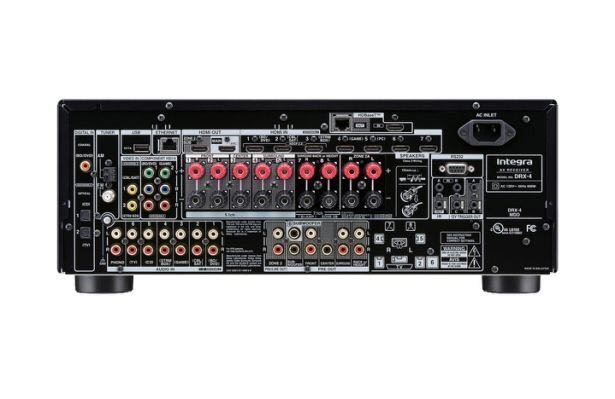

日本Integra DRX-4 環繞擴大機7.2聲道

型式：7.2聲道AV環繞擴大機
HDMI：8進2出
支援 AirPlay / Google Cast
支援 HDBaseT 輸出
輸出功率：180瓦/每聲道(6Ω)
最新音效格式：Dolby Atmos，DTS:X
台北市大安區樂利路20之1號

$59,800

購買數量

Amplifier Section

Power Output (8 Ω, 20 Hz-20 kHz, FTC)	110W / Channel (8 Ω)

Dynamic Power	250W / Channel (3 Ω) 220W / Channel (4 Ω) 130W / Channel (8 Ω)

THD (Total Harmonic Distortion + Noise)	0.08% (20 Hz-20 kHz, Half Power)

Input Sensitivity and Impedance	200 mV / 47 k-Ω (LINE) 3.5 mV / 47 k-Ω (Phono MM)

Rated RCA Output Level and Impedance	1 Vrms / 470 Ω (Subwoofer Pre Out) 200 mV / 2.3 k-Ω (Zone Line Out) 2.0 V / 2.3 k-Ω (Zone Pre Out)

Phono Overload	70 mV (MM 1 kHz, 0.5%)
Frequency Response	5 Hz - 100 kHz / +1 dB-3 dB (Direct Mode)

Tone Control	±10dB, 90 Hz (Bass) ±10dB, 7.5 kHz (Treble)

Signal-to-Noise Ratio	106 dB (Line, IHF-A) 80 dB (Phono)

Speaker Impedance	6 Ω - 16 Ω

Video Section

Input Sensitivity / Output Level and Impedance	1.0 Vp-p / 75 Ω (Component Y) 0.7 Vp-p / 75 Ω (Component Pb/Cb, Pr/Cr) 1.0 Vp-p / 75 Ω (Composite)

Tuner Section

Tuning Frequency Range	FM 87.5 MHz - 107.9 MHz 530 kHz - 1,710 kHz

FM / AM Preset Memory	40 Stations

General

Power Supply	AC 120 V, 60 Hz

Power Consumption	600 W

Stand-by Power Consumption	0.1 W

Dimensions (W X H X D)	17 1/8" x 6 7/8" x 14 13/16" 435 x 174 x 376.5 mm

Weight	24.3 lbs. (11.0 kg)

Carton

Box Dimensions (W X H X D)	22 7/16" x 11 3/4" x 18 7/16" 570 x 298 x 469 mm

Box Weight	30.9 lbs. (14.0 kg)
