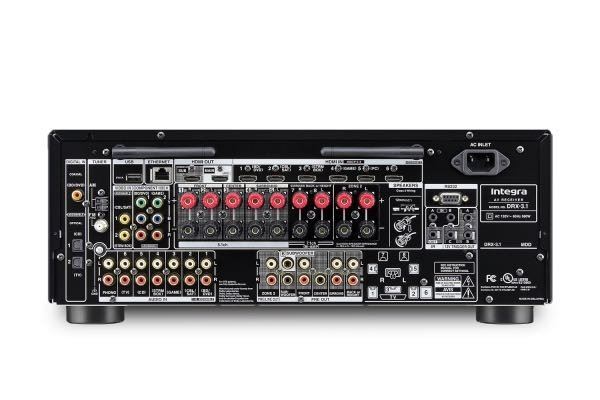

日本Integra DRX-3.2 環繞擴大機 9.2聲道

連接後環繞揚聲器可改善後置聲場營造出的音效環繞感以及銜接感，創造更真實的聲場。
HDMI：7進2出
輸出功率：215瓦/每聲道(6Ω)
最新影音格式 : Dolby Atmos / DTS:X / Dolby Vision / HDR10 /
支援 WiFi / DTS Play-Fi / Bluetooth / AirPlay / Google Assistant

#歡迎預約視聽 0983-365-912 / 2704-4546
台北市大安區樂利路20之1號
來店視聽享優惠 !

{ HI-end音響 / 家庭劇院 / 家電 }
規劃 / 施工 / 安裝

$49,800

購買數量

Amplifier Section

Power Output (8 Ω, 20 Hz-20 kHz, FTC)	90W / Channel (8 Ω)

Dynamic Power	240W / Channel (3 Ω) 210W / Channel (4 Ω) 120W / Channel (8 Ω)

THD (Total Harmonic Distortion + Noise)	0.08% (20 Hz-20 kHz, Half Power)

Input Sensitivity and Impedance	200 mV / 47 k-Ω (LINE) 3.5 mV / 47 k-Ω (Phono MM)

Rated RCA Output Level and Impedance	1 V / 200 mV / 470 Ohms (Zone Pre / Line Out) 1 V / 470 Ohms (Subwoofer Pre Out)

Phono Overload	70 mV (MM 1 kHz, 0.5%)
Frequency Response	10 Hz - 100 kHz / +1 dB-3 dB

Tone Control	±10dB, 90 Hz (Bass) ±10dB, 7.5 kHz (Treble)

Signal-to-Noise Ratio	106 dB (Line, IHF-A) 80 dB (Phono)

Speaker Impedance	4 Ω - 16 Ω

Video Section

Input Sensitivity / Output Level and Impedance	1.0 Vp-p / 75 Ω (Component Y) 0.7 Vp-p / 75 Ω (Component Pb/Cb, Pr/Cr) 1.0 Vp-p / 75 Ω (Composite)

Tuner Section

Tuning Frequency Range	FM 87.5 MHz - 107.9 MHz 530 kHz - 1,710 kHz

FM / AM Preset Memory	40 Stations

General

Power Supply	AC 120 V, 60 Hz

Power Consumption	740 W

Stand-by Power Consumption	0.15 W

Dimensions (W X H X D)	435 x 174 x 376.5 mm

Weight	10.6 kg

Carton

Box Dimensions (W X H X D)	570 x 298 x 469 mm

Box Weight	13.5 kg

日本Integra DRX-3.2 環繞擴大機 9.2聲道

Amplifier Section

Video Section

Tuner Section

General

Carton
