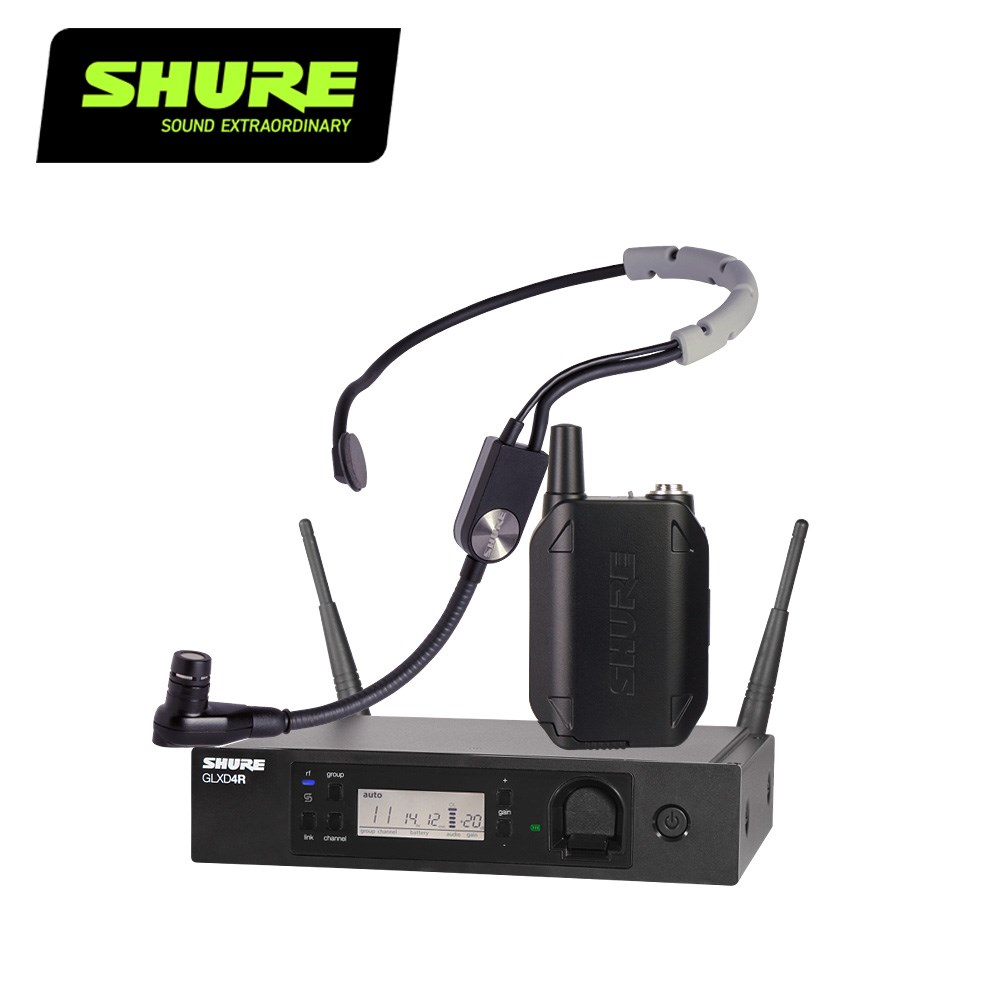

GLXD14R/SM35 Specifications
Set Type:Presenter
Amount of Bodypacks:1
Amount of TQG Mics:1

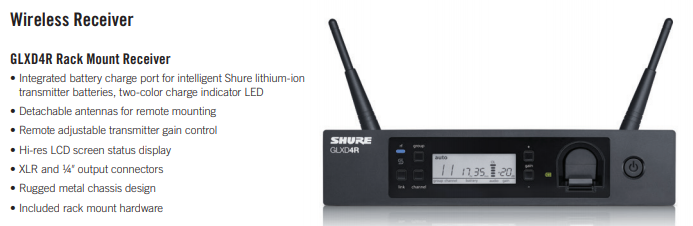

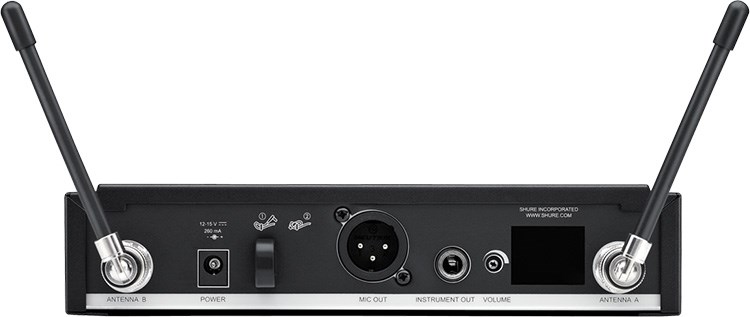

GLXD4R Specifications
Weight:907 g
Height x Width x Depth:42.0 × 197.0 × 163.0 mm
Transmission:Digital on 2.4 GHz
Receiver Housings:Metal
Scan Features:Channel Scan, Group Scan
Software control :Shure Update Utility
Rack Hardware:Included Rack Mounts Brackets
Receiver type:Single
Included antenna:External 1/2 Wave
Power Requirements:14 to 18 VDC (tip positive with respect to ring) 550 mA
Gain adjustment range:-18 to 42
Phantom Power Protection:Yes
Spurious Rejection:35 dB, typical
Antenna Input Impedance:50 Ω
GLXD1 Specifications
Weight:132 g
Height x Width x Depth:90.4 × 64.5 × 22.9 mm
Battery life lithium:16 h
Battery life alkaline:0 h
Form Factor:Bodypack
Transmitter housings:Metal
Bodypack HxWxD without antenna:90.4 x 64.5 x 22.9 g
Batteries:Shure Lithium-Ion battery
Battery Status:Multi-Color LED
Charger Options:USB Charger
Connectors:TQG
Functionality:Transmitter
Input impedance:900 kΩ
Transmission:Digital on 2.4 GHz
SM35 Specifications
Weight:72 g
Frequency Response:50 Hz – 20 kHz
Frequency Response:Tailored
Sensitivity:-59.00 dBV/Pa – 1.10 mV/Pa
Equivalent Selfnoise:39 dB(A)
Sound Pressure:153.0 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Connectors:3 Pin XLR, TQG (T4AF, 4-Pin Mini)
Main Functionality:Performance
Requires Phantom Power:TQG: 5v DC (bias), XLR: 11 to 52 VDC VDC
Cartridge:Fixed
