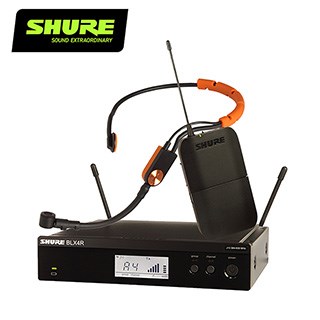

BLX14R/SM31 Specifications
Set Type:Headset
Amount of Bodypacks:1
Amount of TQG Mics:1

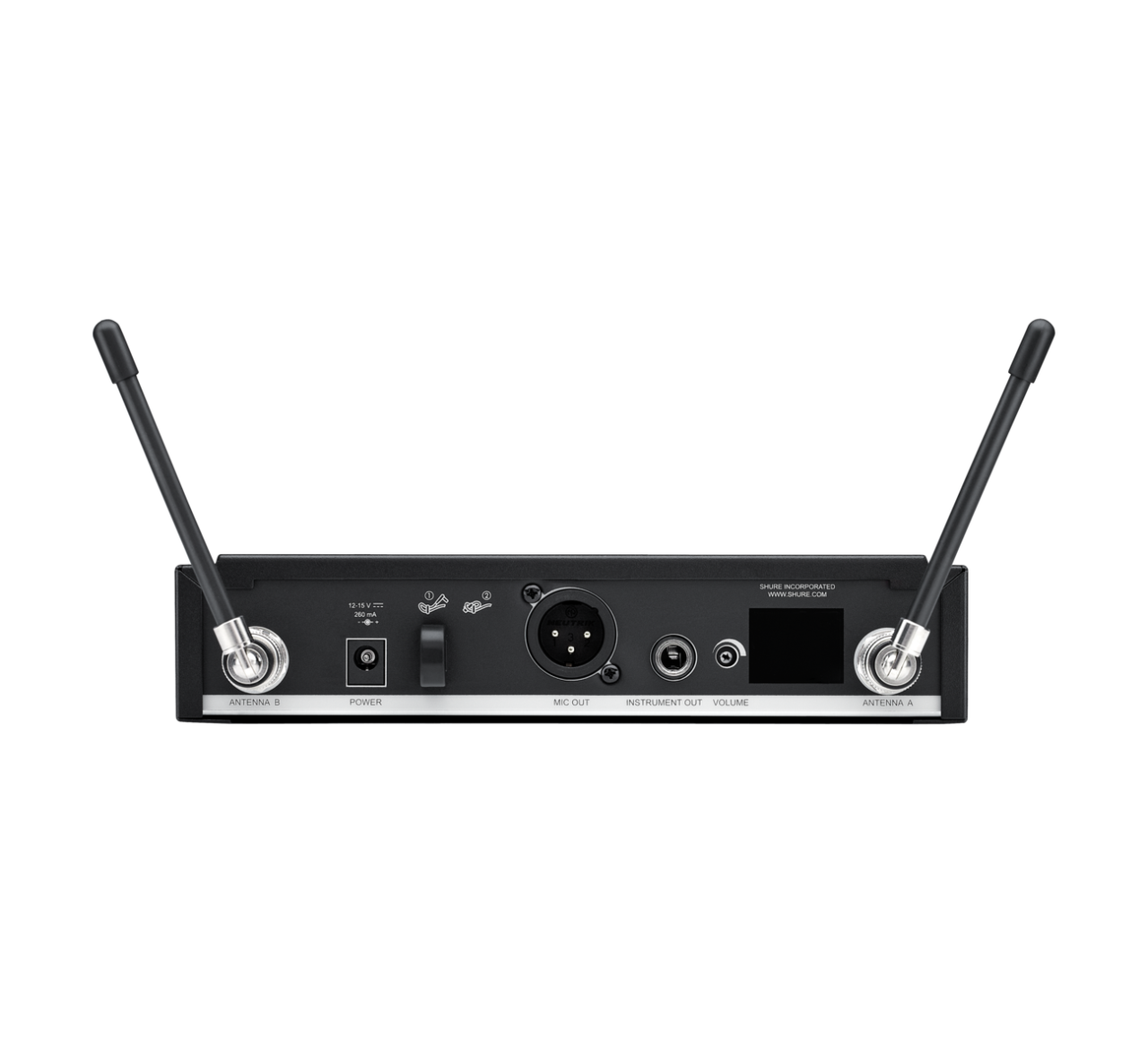

BLX4R Specifications
Weight:998 g
Height x Width x Depth:45.0 × 198.0 × 163.0 mm
Transmission:Analog
Type of Power Supply:External
Receiver Housings:Molded ABS, Metal
Active Antenna Possible:Optional with UABiasT
Number of compatible systems info:12
Scan Features:Quick Scan
Sync Features:None
Detachable Antennas:Yes
Rack Hardware:Included Rack Mounts Brackets
Receiver Displays:Multi-function LCD
Receiver type:Single
Included antenna:External 1/4 Wave
Battery Status:Multi-Color LED
Image Rejection:50 dB, typical
RF Sensitivity:-105 dBm, for 12dB SINAD, typical
Phantom Power Protection:Yes
Antenna Input Impedance:50 Ω

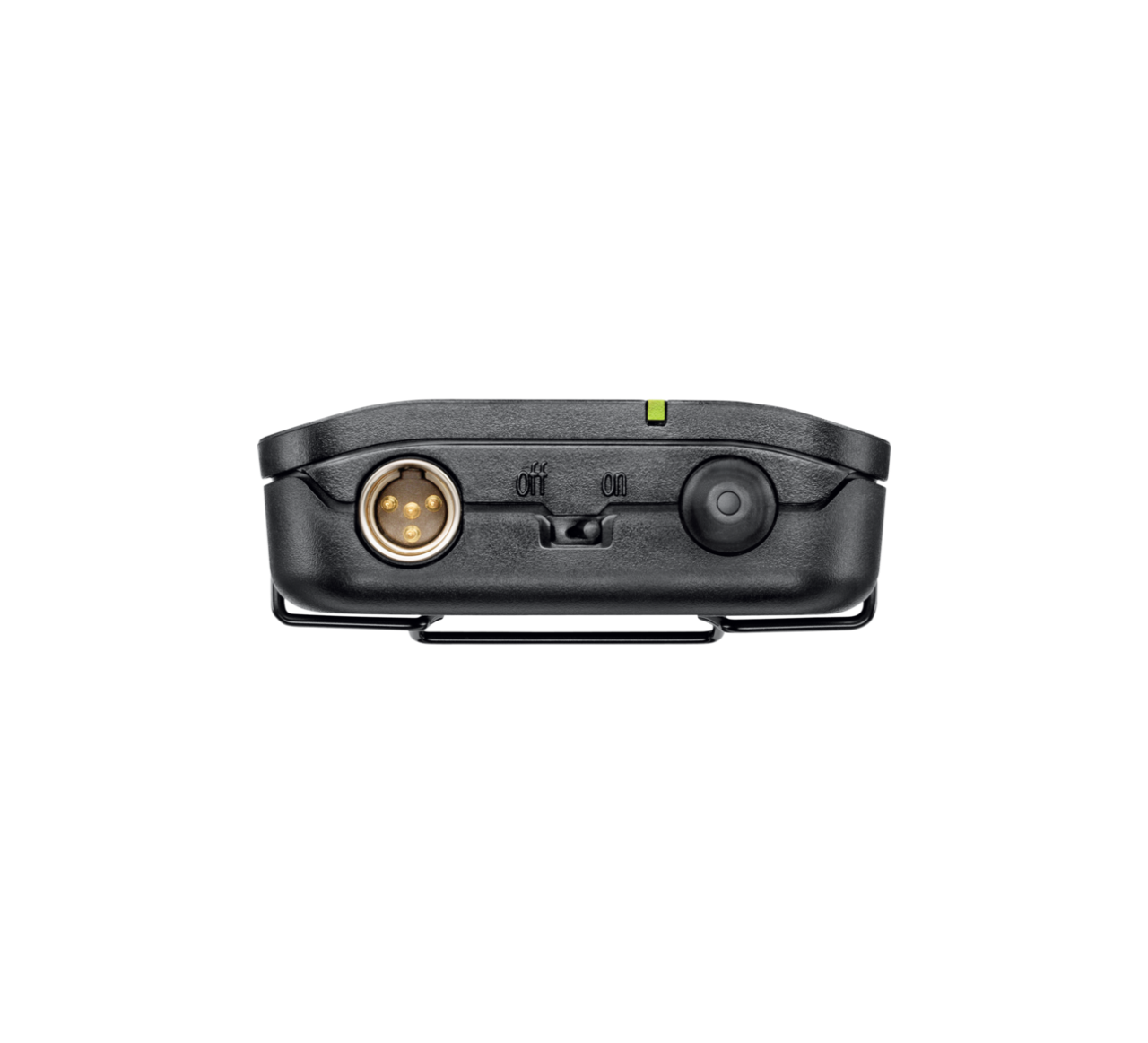

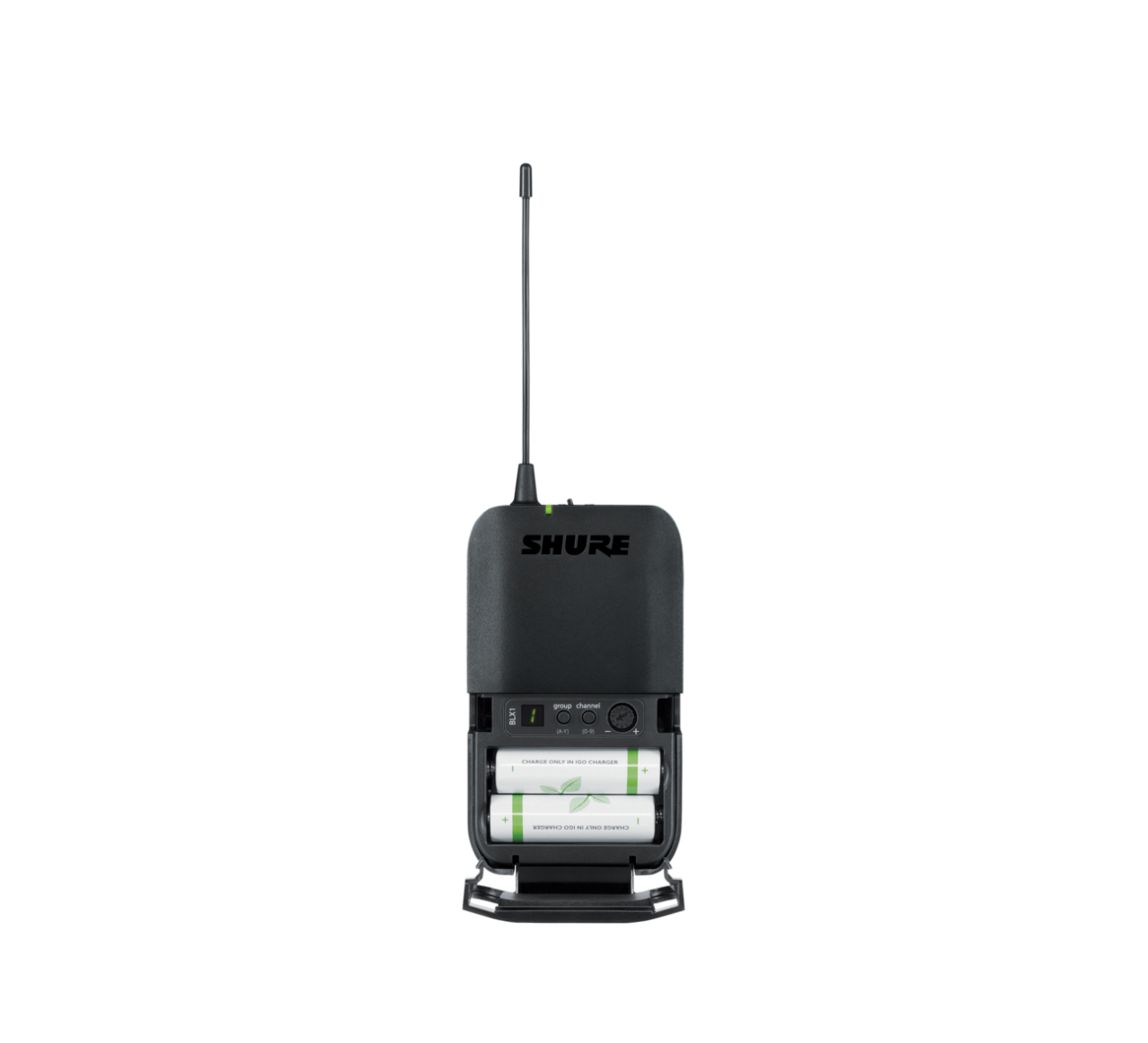

BLX1 Specifications
Weight:75 g
Height x Width x Depth:110.0 × 64.0 × 21.0 mm
Battery life lithium:0 h
Battery life alkaline:14 h
Form Factor:Bodypack
Transmitter housings:Molded ABS
Batteries:AA
Battery Status:Multi-Color LED
Connectors:TQG
Functionality:Transmitter
Gain adjustment range:26 dB
Included antenna:1/4 wave
Input impedance:1000 kΩ
Transmission:Analog
SM31FH Specifications
Weight:60 g
Frequency Response:45 Hz – 20 kHz
Frequency Response:Tailored
Sensitivity:-50.00 dBV/Pa – 3.16 mV/Pa
Equivalent Selfnoise:28 dB(A)
Sound Pressure:145.0 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Switchable low cut:No
Connectors:TQG (T4AF, 4-Pin Mini)
Main Functionality:Performance
Requires Phantom Power:5v DC (bias) VDC
Cartridge:Fixed
