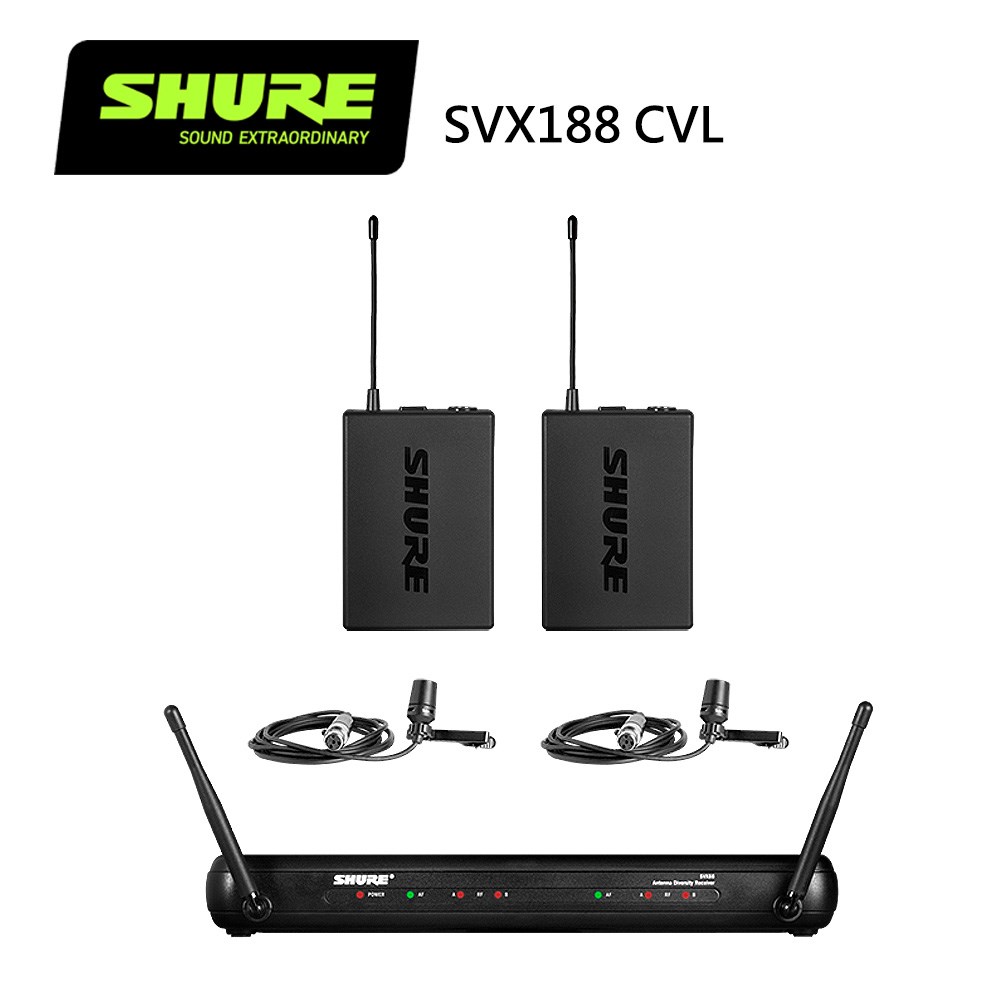

SVX188/CVL Specifications
Set Type:Dual Presenter
Amount of Bodypacks:2
Amount of TQG Mics:2

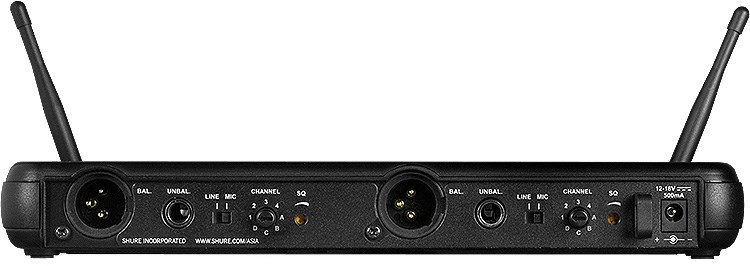

SVX88 Specifications
Weight:245 g
Height x Width x Depth:32.0 × 168.0 × 104.5 mm
Transmission:Analog
Number of compatible systems per frequency band:Up to 4
Receiver type:Dual
Image Rejection:50 dB, typical
RF Sensitivity:-105 dBm, for 12dB SINAD, typical
Phantom Power Protection:Yes

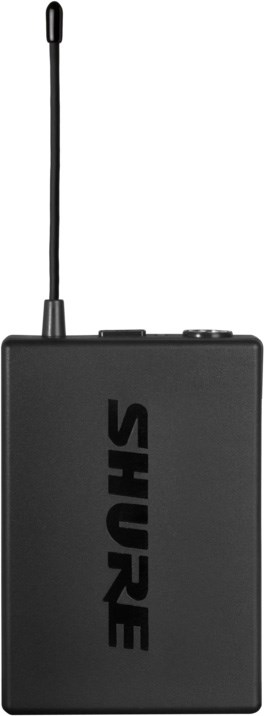

SVX1 Specifications
Weight:90 g
Battery life lithium:0 h
Battery life alkaline:10 h
Form Factor:Bodypack
Bodypack HxWxD without antenna:108x64x19 g
Functionality:Transmitter
Input impedance:22 kΩ
Transmission:Analog
CVL Specifications
Weight:25 g
Frequency Response:60 Hz – 12 kHz
Frequency Response:Tailored
Sensitivity:-43.50 dBV/Pa – 6.60 mV/Pa
Self-Noise:22 dB(A)
Max. Sound Pressure Level:139 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Connectors:TQG (T4AF, 4-Pin Mini)
Main Functionality:Installed
Requires Phantom Power:+5v DC, 10v Max VDC
