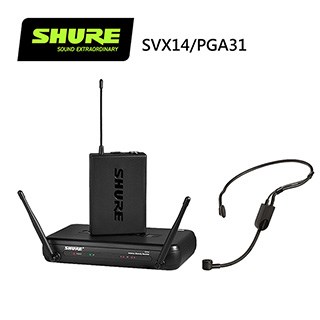

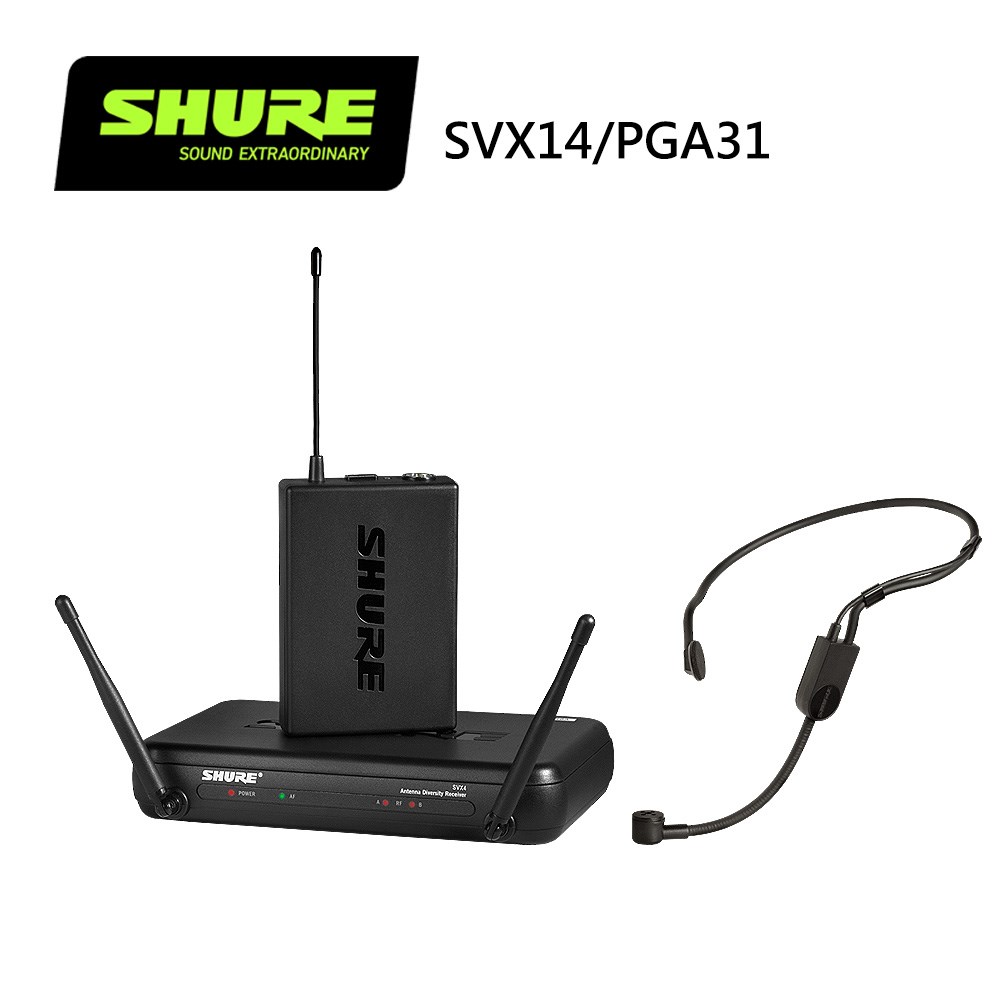

SVX14/PGA31 Specifications
Set Type:Headset
Amount of Bodypacks:1
Amount of TQG Mics:1

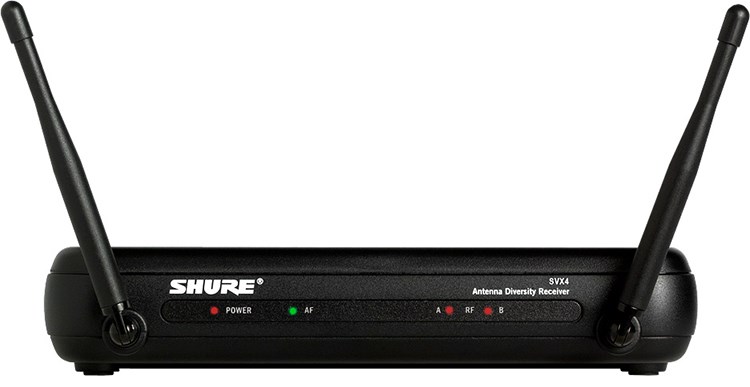

SVX4 Specifications
Transmission:Analog
Type of Power Supply:External
Receiver Housings:Molded ABS
Number of compatible systems per frequency band:Up to 4
Receiver type:Single
Power Requirements:12 to 18 V DC @ 130 mA
Phantom Power Protection:Yes

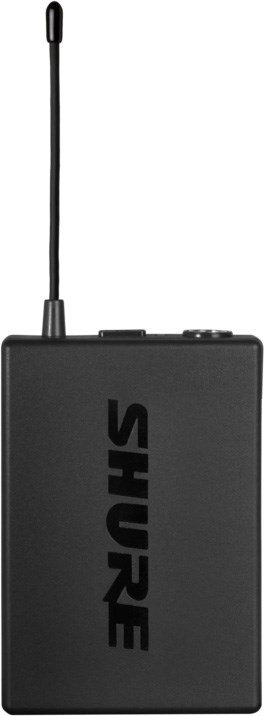

SVX1 Specifications
Weight:90 g
Battery life lithium:0 h
Battery life alkaline:10 h
Form Factor:Bodypack
Functionality:Transmitter
Input impedance:22 kΩ
Transmission:Analog
PGA31 Specifications
Weight:45 g
Frequency Response:60 Hz – 20 kHz
Frequency Response:Tailored
Sensitivity:-50.00 dBV/Pa – 3.16 mV/Pa
Self-Noise:28 dB(A)
Max. Sound Pressure Level:145 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Connectors:TQG (T4AF, 4-Pin Mini)
Main Functionality:Performance
Requires Phantom Power:5v DC (bias) VDC
Cartridge:Fixed
