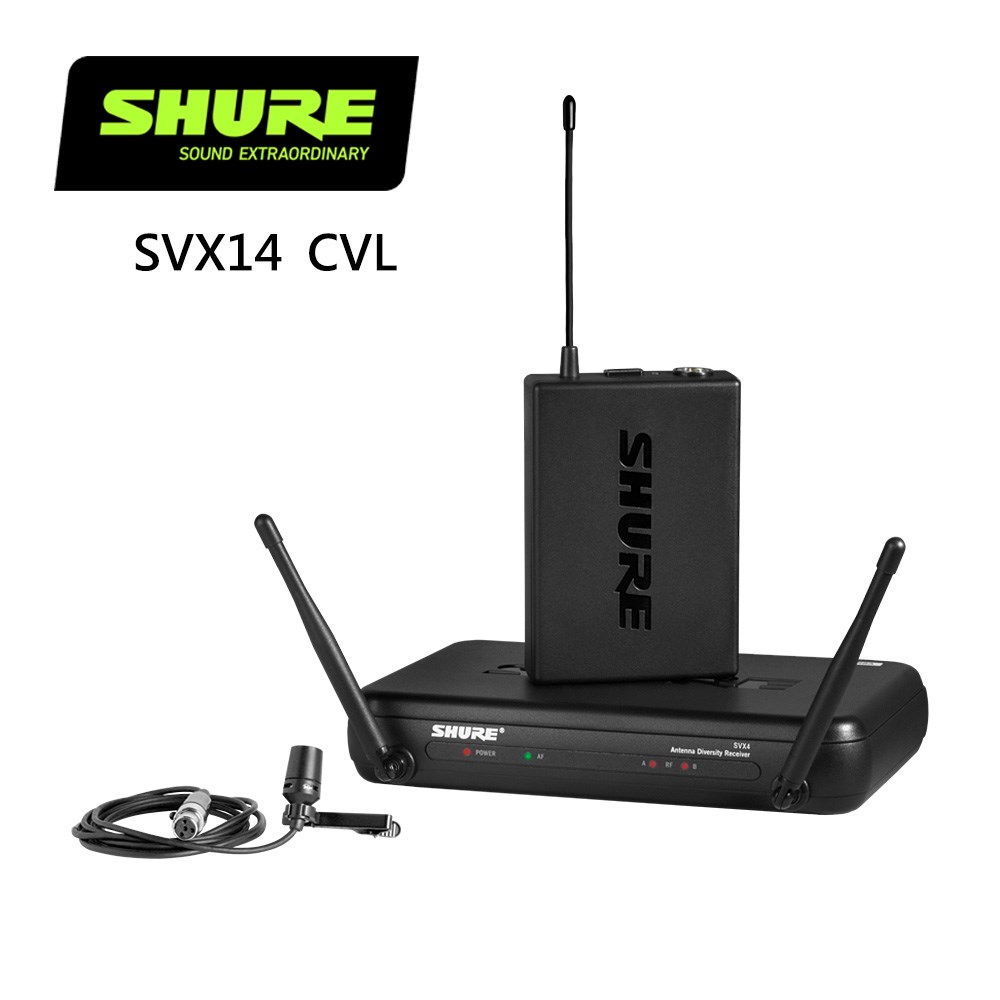

SVX14/CVL Specifications
Set Type:Presenter
Amount of Bodypacks:1
Amount of TQG Mics:1

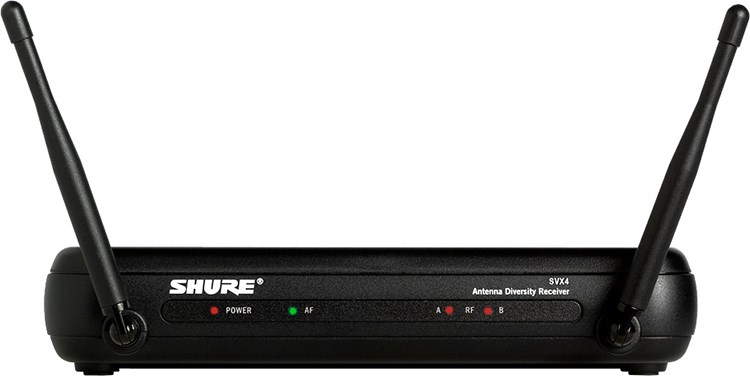

SVX4 Specifications
Transmission:Analog
Type of Power Supply:External
Receiver Housings:Molded ABS
Number of compatible systems per frequency band:Up to 4
Receiver type:Single
Power Requirements:12 to 18 V DC @ 130 mA
Phantom Power Protection:Yes
SVX1 Specifications
Weight:90 g
Battery life lithium:0 h
Battery life alkaline:10 h
Form Factor:Bodypack
Bodypack HxWxD without antenna:108x64x19 g
Functionality:Transmitter
High Density Mode:No
Input impedance:22 kΩ
Transmission:Analog
CVL Specifications
Weight:25 g
Frequency Response:60 Hz – 12 kHz
Frequency Response:Tailored
Sensitivity:-43.50 dBV/Pa – 6.60 mV/Pa
Self-Noise:22 dB(A)
Max. Sound Pressure Level:139 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Connectors:TQG (T4AF, 4-Pin Mini)
Main Functionality:Installed
Requires Phantom Power:+5v DC, 10v Max VDC
