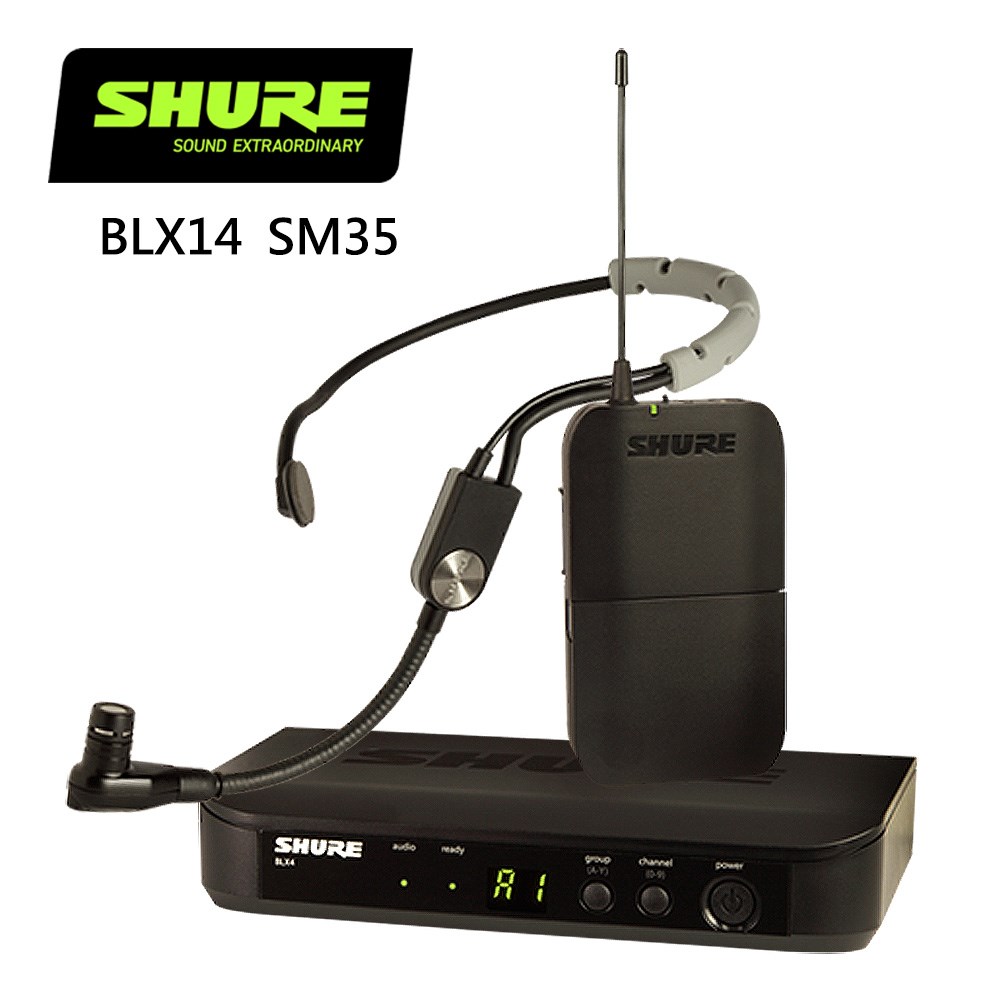

BLX14/SM35 Specifications
Set Type:Headset
Amount of Bodypacks:1
Amount of TQG Mics:1
Included Case / Pouch:Case

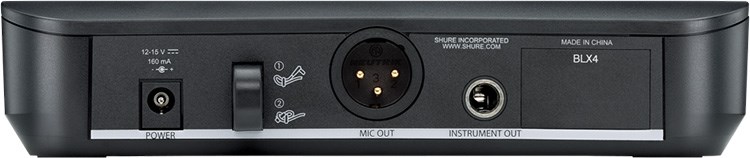

BLX4 Specifications
Weight:241 g
Height x Width x Depth:40.0 × 188.0 × 103.0 mm
Transmission:Analog
Type of Power Supply:External
Receiver Housings:Molded ABS
Number of compatible systems per frequency band:Up to 12
Scan Features:Quick Scan
Rack Hardware:Optional: Urt2
Receiver Displays:LEDs
Receiver type:Single
Included antenna:Internal
Image Rejection:50 dB, typical
RF Sensitivity:-105 dBm, for 12dB SINAD, typical
Phantom Power Protection:Yes

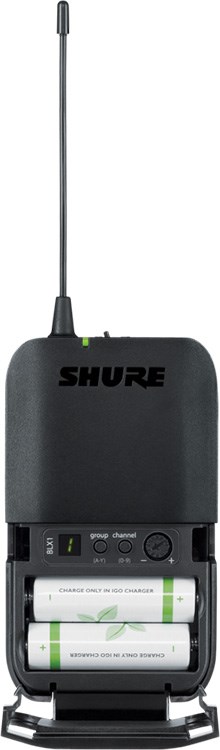

BLX1 Specifications
Weight:75 g
Height x Width x Depth:110.0 × 64.0 × 21.0 mm
Battery life lithium:0 h
Battery life alkaline:14 h
Form Factor:Bodypack
Transmitter housings:Molded ABS
Batteries:AA
Battery Status:Multi-Color LED
Connectors:TQG
Functionality:Transmitter
Gain adjustment range:26 dB
Included antenna:1/4 wave
Input impedance:1000 kΩ
Transmission:Analog

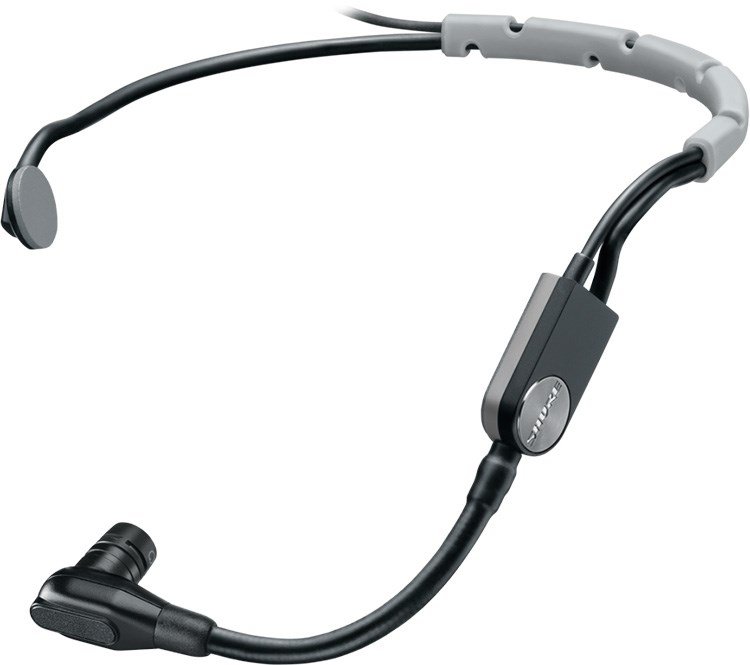

SM35 Specifications
Weight:72 g
Frequency Response:50 Hz – 20 kHz
Frequency Response:Tailored
Sensitivity:-59.00 dBV/Pa – 1.10 mV/Pa
Self-Noise:39 dB(A)
Max. Sound Pressure Level:153.0 dB
Transducer Type:Condenser
Polar Pattern:Cardioid
Connectors:3 Pin XLR, TQG (T4AF, 4-Pin Mini)
Main Functionality:Performance
Requires Phantom Power:TQG: 5v DC (bias), XLR: 11 to 52 VDC VDC
Cartridge:Fixed
