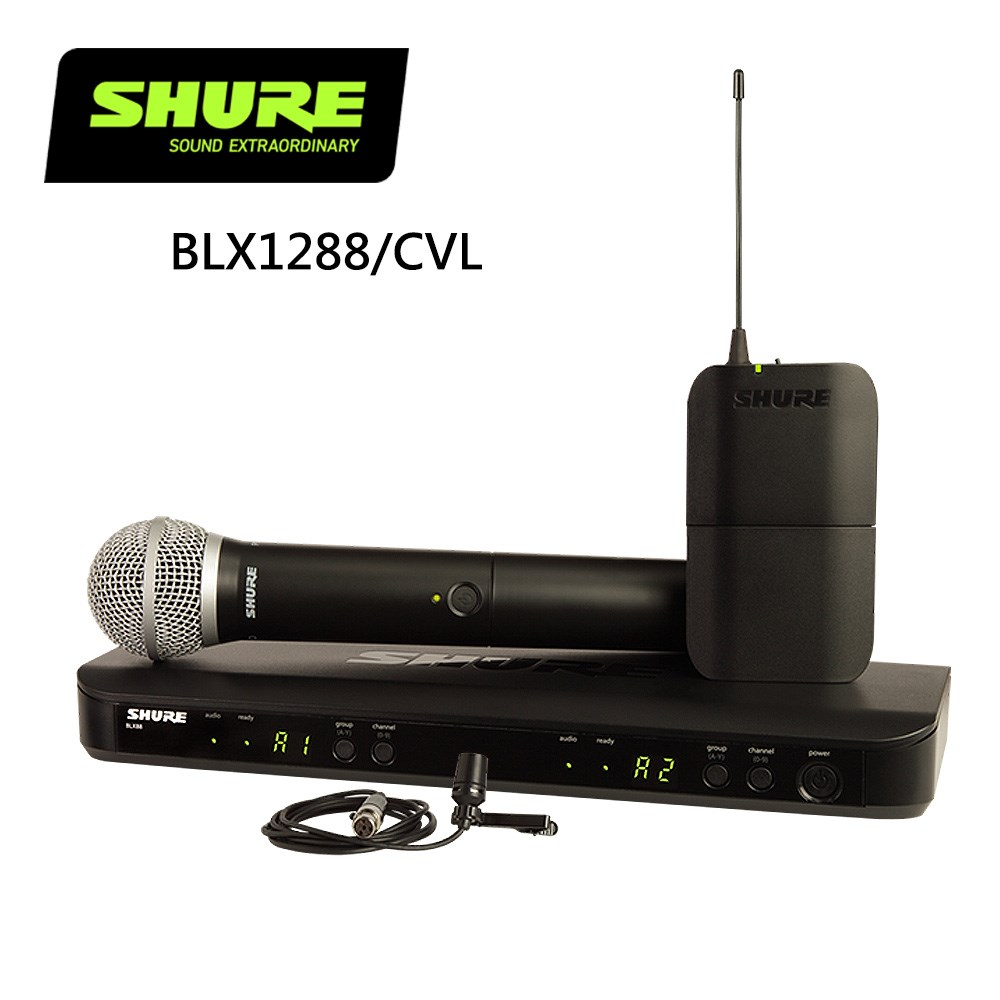

SHURE BLX1288 / CVL 領夾式無線麥克風組合系統-原廠公司貨

BLX1288/CVL Specifications

Set Type:Lavalier/Handheld Combo

Amount of Bodypacks:1

Amount of Handhelds:1

Amount of TQG Mics:1

BLX88 Specifications

Weight:429 g

Height x Width x Depth:40.0 × 388.0 × 116.0 mm

Transmission:Analog

Type of Power Supply:External

Receiver Housings:Molded ABS

Number of compatible systems per frequency band:12

Scan Features:Quick Scan

Rack Hardware:Optional: Urt2

Receiver Displays:LEDs

Receiver type:Dual

Image Rejection:50 dB, typical

RF Sensitivity:-105 dBm, for 12dB SINAD, typical

Phantom Power Protection:Yes

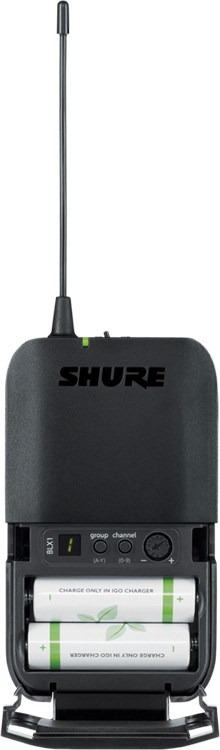

BLX1 Specifications

Weight:75 g

Height x Width x Depth:110.0 × 64.0 × 21.0 mm

Battery life lithium:0 h

Battery life alkaline:14 h

Form Factor:Bodypack

Transmitter housings:Molded ABS

Batteries:AA

Battery Status:Multi-Color LED

Connectors:TQG

Functionality:Transmitter

Gain adjustment range:26 dB

High Density Mode:No

Included antenna:1/4 wave

Input impedance:1000 kΩ

Transmission:Analog

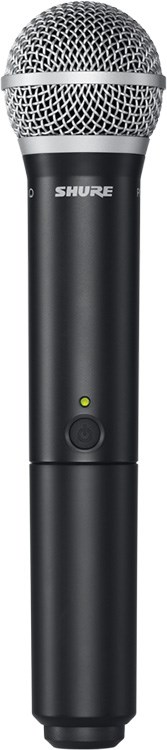

BLX2/PG58 Specifications

Weight:340 g

Height x Width x Depth:224.0 × 53.0 × 53.0 mm

Transmitter weight:218 g

Battery life lithium:0 h

Battery life alkaline:14 h

Form Factor:Handheld

Transmitter housings:Molded ABS

Batteries:AA

Battery Status:Multi-Color LED

Functionality:Transmitter

Transmission:Analog

CVL Specifications

Weight:25 g

Frequency Response:60 Hz – 12 kHz

Frequency Response:Tailored

Sensitivity:-43.50 dBV/Pa – 6.60 mV/Pa

Self-Noise:22 dB(A)

Max. Sound Pressure Level:139 dB

Transducer Type:Condenser

Polar Pattern:Cardioid

Switchable low cut:No

Connectors:TQG (T4AF, 4-Pin Mini)

Main Functionality:Installed

Requires Phantom Power:+5v DC, 10v Max VDC
