XLR connections

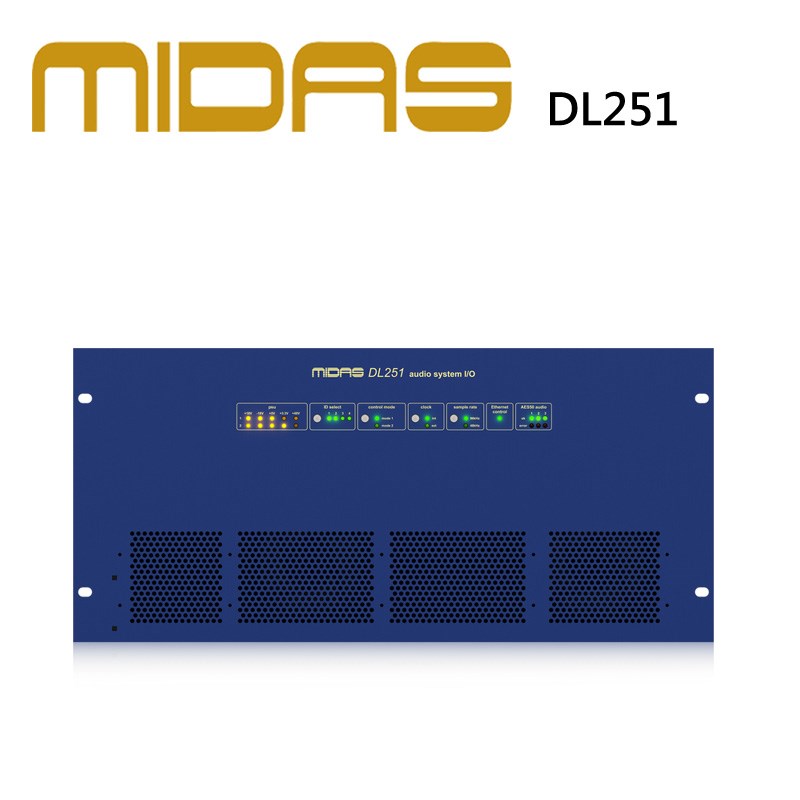

1 x 5U rack I/O box houses:

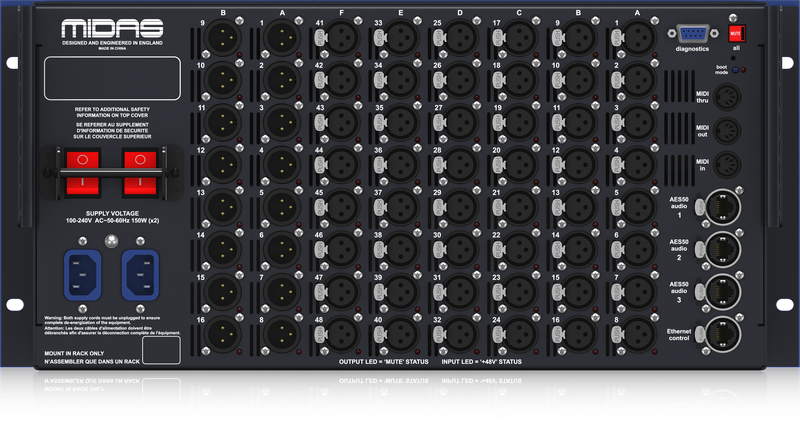

48 x (XLR) mic/line inputs 16 x (XLR) line outputs
Resilience

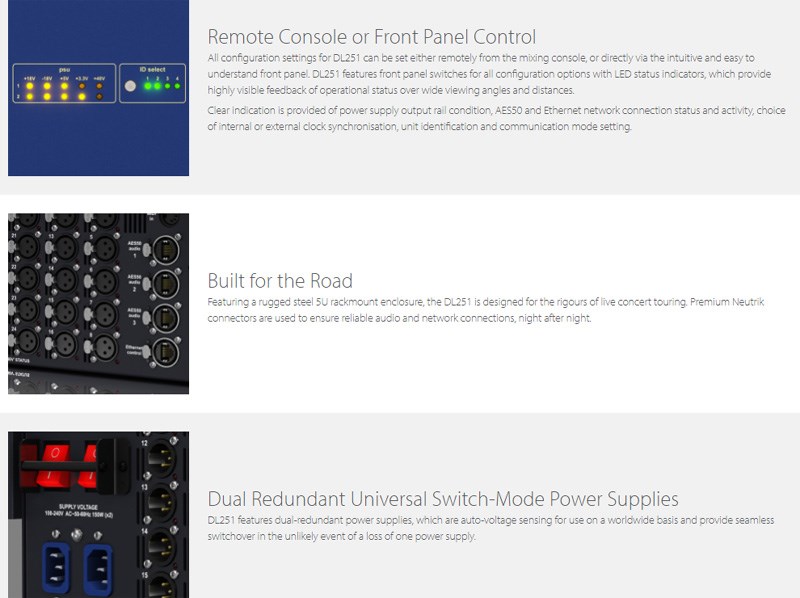

N + 1 cable redundancy and dual redundant PSUs
General Specifications
Sampling rate
48 kHz, 96 kHz
Dynamic range
107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain
45 dB
Crosstalk @ 1 kHz
-100 dB physically adjacent input channels
Crosstalk @ 10 kHz
-90 dB physically adjacent input channels
Dimensions
5U x 414 mm deep
Net weight
10 kg
Shipping weight
18 kg
Power requirements
100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V
1 PSU: 85 W, 85 VA 2 PSU: 110 W, 110 VA
Power consumption at 230 V
1 PSU: 90 W, 100 VA 2 PSU: 110 W, 135 VA
Operating temperature range
+5°C to +40°C
Storage temperature range
-20°C to +60°C
