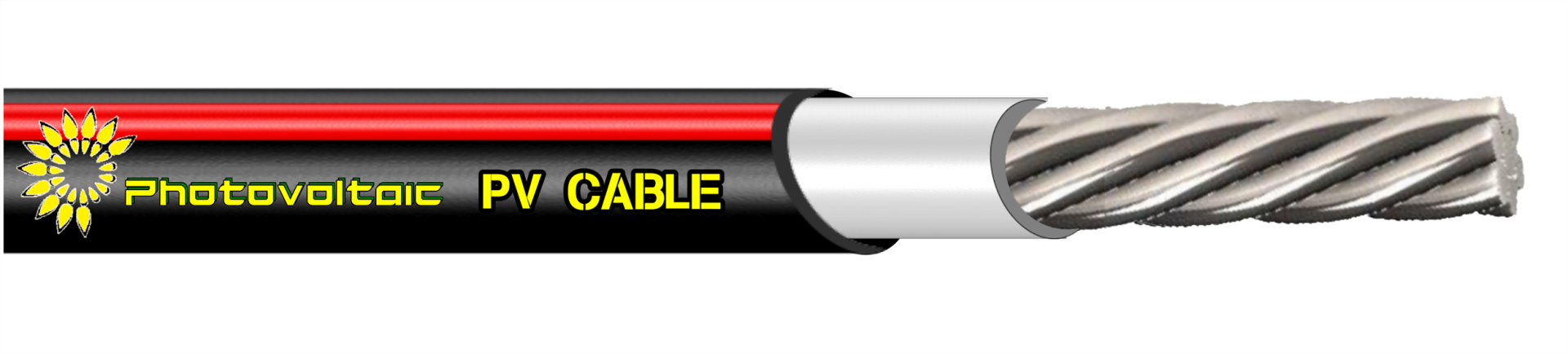

12.2 PV CABLE 【PHOTOVOLTAIC / SOLOR】

【TÜV EN 50618:2014】
Conductor : Acc. to IEC 60228
Conductor Material: Tinned Copper
Insulation : Electron-beam cross-linked polyethylene
Sheath : Electron-beam cross-linked polyethylene
Sheath color: Black / Red / Blue or as requires

Sunlight-resistant, photovoltaic wire rated for 90°C wet or dry, 1000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described

分享到

MAP® PV CABLE 【PHOTOVOLTAIC / SOLOR】

PV CABLE SPECIFICATION

 Cross-Section (mm²)

  Cond. Structure

 Stranded Dia.

 Insulation Dia

 Overall Dia

2.5 mm²

TC 0.25mm / 48

2.00mm

3.80 mm

5.3 mm

4.0 mm²

TC 0.30mm / 52

2.60mm

4.2 mm

5.9 mm

6.0 mm²

TC 0.30mm / 78

3.40mm

5.0 mm

6.8 mm

10 mm²

TC 0.40mm / 75

4.80 mm

6.5 mm

8.1 mm

16 mm²

TC 0.40mm / 120

6.00 mm

7.6 mm

9.5 mm
