8.4 UL2733 UL2586 UL2516 UL2501 Severmotor Cable 105°C 600V

This product meets the safety requirements of UL758 cable and has passed the UL flame test standard.
Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.
Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

分享到

商品特色

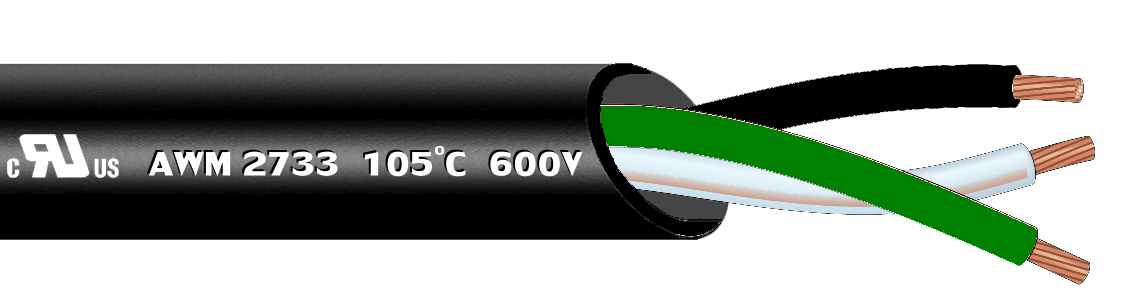

UL STYLE【AWM 2733】

AWM 2733 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of a wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2733 (UL2733 105℃ 600V )

AWG	Numb of core	Structure	inner Dia.	OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	5.85 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	7.00 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	7.95 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	6.50 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	7.80 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	8.90 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	7.50 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	9.00 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	10.30 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	9.10 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	10.96 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.2 mm	12.54 mm ± 5%

UL STYLE【AWM 2586】

AWM 2586 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of a wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2586 (UL2733 105℃ 600V )

AWG	Numb of core	Structure	inner Dia.	OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	6.60 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	7.80 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	8.75 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	7.30 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	8.60 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	9.70 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	8.30 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	9.80 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	11.00 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	9.90 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	11.80 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	13.35 mm ± 5%

UL STYLE【AWM 2516】

AWM 2516 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2516 (UL2733 105℃ 600V )

AWG	Numb of core	Structure	inner Dia.	OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	7.40 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	8.50 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	9.50 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	8.10 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	9.35 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	10.45 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	9.00 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	10.50 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	12.60 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	11.40 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	13.35 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	14.90 mm ± 5%

UL STYLE【AWM 2501】

AWM 2501 product meets the safety requirements of UL758 cable and has passed the UL flame test standard.

Rated temperature resistance of wire: 105℃ Rated voltage: 600V, suitable for servo motor application, robotic arm application, PCB cutting instrument equipment.

Conductor specifications follow DIN VDE 0295 Class 6. (Annealed copper)

AWM 2501 (UL2733 105℃ 600V )

AWG	Numb of core	Structure	inner Dia.	OVERALL DIA
16AWG	2C	TC 26/0.254mm	3.10 ± 0.20 mm	8.1 mm ± 5%
16AWG	3C	TC 26/0.254mm	3.10 ± 0.20 mm	9.24 mm ± 5%
16AWG	4C	TC 26/0.254mm	3.10 ± 0.20 mm	10.2 mm ± 5%
14AWG	2C	TC 41/0.254mm	3.50 ± 0.20 mm	8.76 mm ± 5%
14AWG	3C	TC 41/0.254mm	3.50 ± 0.20 mm	10.04 mm ± 5%
14AWG	4C	TC 41/0.254mm	3.50 ± 0.20 mm	11.13 mm ± 5%
12AWG	2C	TC 65/0.254mm	4.10 ± 0.25 mm	9.74 mm ± 5%
12AWG	3C	TC 65/0.254mm	4.10 ± 0.25 mm	11.24 mm ± 5%
12AWG	4C	TC 65/0.254mm	4.10 ± 0.25 mm	12.51 mm ± 5%
10AWG	2C	TC 105/0.254mm	5.10 ± 0.25 mm	11.37 mm ± 5%
10AWG	3C	TC 105/0.254mm	5.10 ± 0.25 mm	13.24 mm ± 5%
10AWG	4C	TC 105/0.254mm	5.10 ± 0.25 mm	14.82 mm ± 5%
